Description

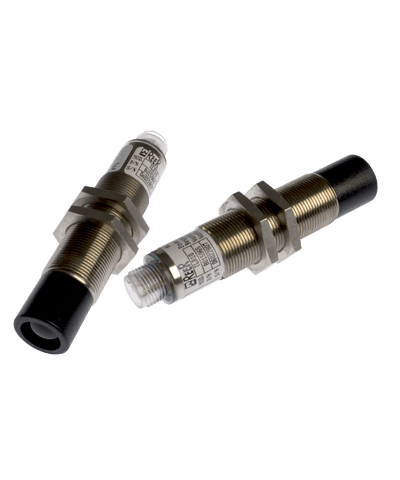

Safety Photocell. M18 Connector. 10 m Range
Technical Data
Features
| Safety level | Type 2 – PL c |
| Max. range (m) | 8 |
| Safety level (SIL / PL) | Type 2 – SILCL 1 – PL c – Cat. 2 (when used with the AUSX, AUSXM ReeR modules and Mosaic) |
| Operating temperature (°C) | 0 … 55 |
| Response time (ms) | 7 (photocell only) |
| Sensor type | Photocells |
| Safety output type | PNP, max 100 mA light on |
| MTTFD (ISO13849) years | 100 |
| PFHD (IEC 61508) | 8,04E-09 |
| Safety outputs | 1 PNP max 100 mA light on |
| LED signalling | Status LED on the emitter and receive |
| Safety functions | With external module |
| Detection | Access control |
| Operating Range (m) | Up to 8 |
| Protective enclosures | None |
| Product class | C |
| Custom tariff | 8541900000 |
| Connection type | Connector |
Electrical data
| Power supply (VDC) | 24 ± 20% |
Mechanical data
| Degree of protection | IP67 |

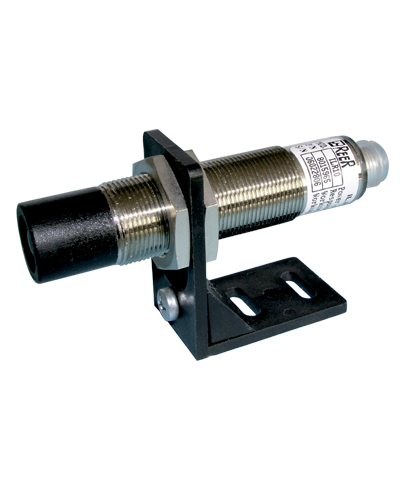

| Fastening | 2 M18 nuts (included). Set of 2 IL FB adjustable brackets (not included) |
| Lenght (mm) | 85 |
| Diameter (mm) | 18 |
