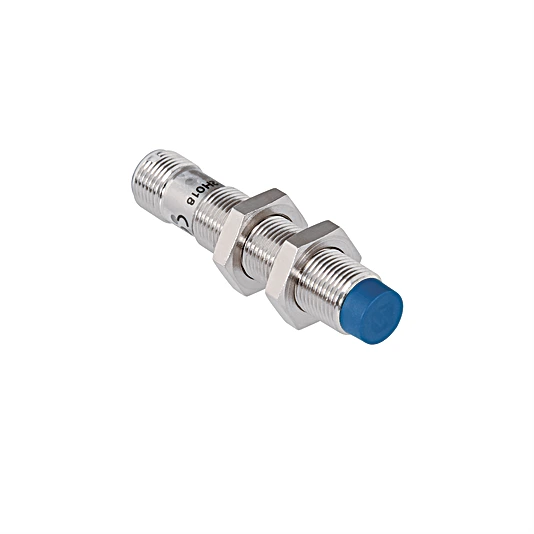

I12H020 Inductive Sensor with IO-Link
Inductive Sensor
In Stock
$112.00
per unit
Applications: Sensors & I/O
Description
The Inductive Sensors have not only been equipped with ASIC, but rather with an IO-Link interface as well for ideal integration into networks. As a result, a total of three switching distances and two switching frequencies can be selected, and PNP/NPN as well as NO/NC/antivalent options can be set as desired. This reduces the number of variants while simultaneously expanding the scope of functions.
Features at a Glance
- Easy sensor configuration using the IO-Link interface
- Minimal mounting clearance thanks to wenglor weproTec
- Innovative ASIC circuit technology
- Integrated error display and error output
- Adjustable switching distance
Technical Data
Inductive Data
| Switching Distance | 12 mm |
| Standard Target | 36 × 36 mm |
| Correction Factors Stainless Steel V2A/CuZn/Al | 1,05/0,54/0,52 |
| Mounting | Non-flush |
| Mounting A/B/C/D in mm | 20/40/36/14 |
| Mounting B1 in mm | 0…14 |
| Switching Hysteresis | < 10 % |
Electrical Data
| Supply Voltage | 10 … 30 V DC |
| Supply Voltage with IO-Link | 18 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 14 mA |
| Switching Frequency | 360 Hz |
| Temperature Drift | < 10 % |
| Temperature Range | -40 … 80 °C |
| Switching Output Voltage Drop | < 1 V |
| Switching Output/Switching Current | 150 mA |
| Residual Current Switching Output | < 100 µA |
| Short Circuit Protection | yes |
| Overload Protection | yes |
| Reverse Polarity Protection | yes |
| Interface | IO-Link V1.1 |
| Protection Class | III |
Mechanical Data
| Housing Material | Brass, nickel-plated |
| Degree of Protection | IP67 |
| Connection | M12 × 1; 4-pin |
| Weight | 29 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 3,706.54 a |
General Data
| Scope of delivery | 1 × MUTTER-M12-E001 hex nut 1 × sensor |
| Packaging unit | 1 Piece |
Function
| Error Indicator | yes |
| Programmable switching distance | 8/10/12 mm |
Output
| IO-Link | yes |
| Programmable error output | yes |
| PNP NO | yes |
Adjustable parameters
| Output | Push-pull NPN PNP Error Output |
| Circuit | NC NC/NO NO |
| All other parameters can be found in the product documentation. |
