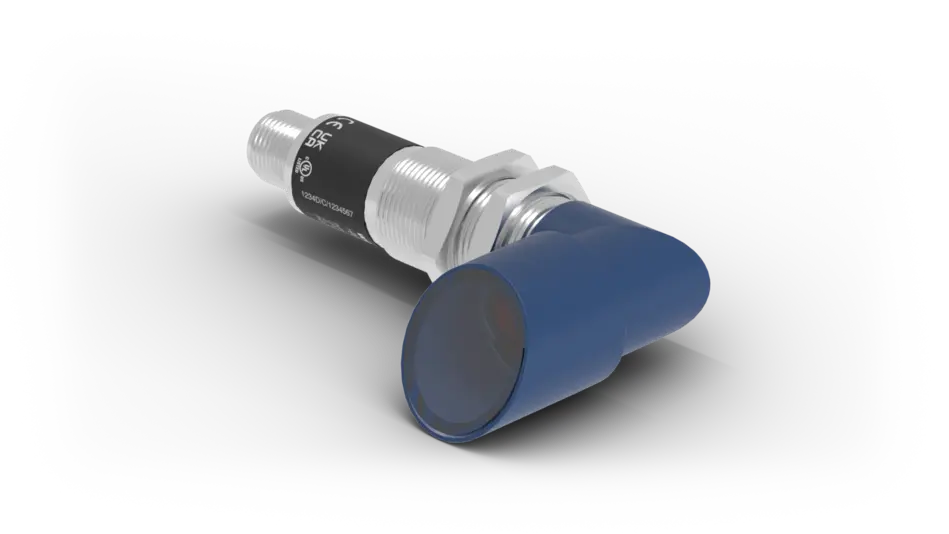

HW11PA3S901 Reflex Sensor with Background Suppression
Reflex Sensor
In Stock
$462.00
per unit
Applications: Sensors & I/O
Description
These sensors detect distance by measuring angles. They are particularly good at recognizing objects in front of any background. The color, shape and surface characteristics of the object have practically no influence on sensor switching performance.
Features at a Glance
- Stainless steel housing
- Adjustable switching distance
- Red light
- No blind spot due to attachment tube
Technical Data
Optical Data
| Range | 120 mm |
| Setting Range | 35 … 120 mm |
| Switching Hysteresis | < 5 % |
| Light Source | Red Light |
| Service Life (T = +25 °C) | 100,000 h |
| Max. Ambient Light | 10,000 Lux |
Electrical Data
| Supply Voltage | 10 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 30 mA |
| Switching Frequency | 600 Hz |
| Response Time | 833 µs |
| Temperature Drift | < 5 % |
| Temperature Range | -25 … 60 °C |
| Switching Output Voltage Drop | < 2.5 V |
| PNP Switching Output/Switching Current | 200 mA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Protection Class | III |
Mechanical Data
| Setting Method | Potentiometer |
| Housing Material | Stainless steel, V2A (1.4305 / 303) Plastic, PBT |
| Degree of Protection | IP67 |
| Connection | M12 × 1; 4-pin |
| Weight | 77 g |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × sensor |
Output
| PNP NC, PNP NO | yes |
Adjustable parameters
| Circuit | NC NC+NO NO |
| All other parameters can be found in the product documentation. |
Standards and certificates
     |
Table 1
| Detection Range | 60 mm | 120 mm |
| Light Spot Diameter | 2,5 mm | 5 mm |
Connection Diagram
 |
Ctrl. Panel
|
05 = Switching Distance Adjuster
30 = Switching Status/Contamination Warning 68 = Power LED |
