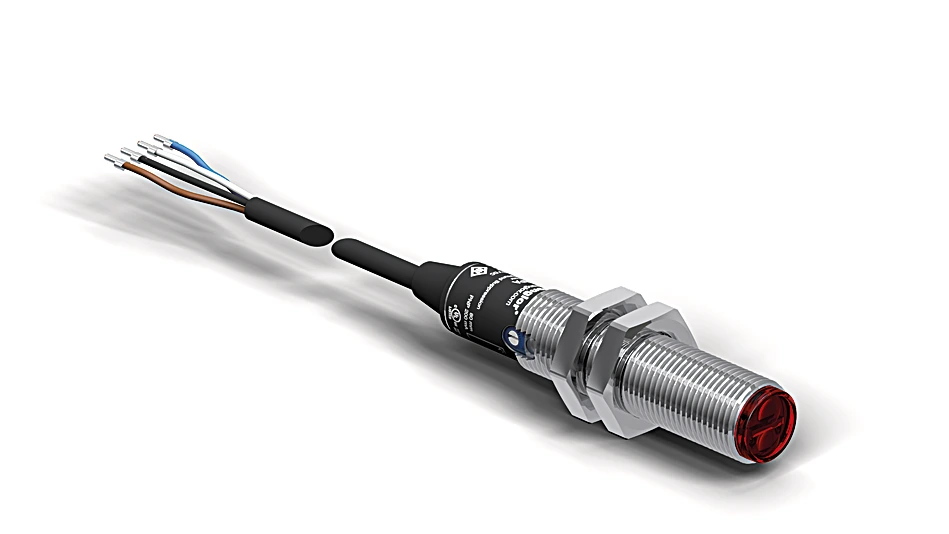

HO08PA Reflex Sensor with Background Suppression
Reflex Sensor
In Stock
$193.00
per unit
Applications: Sensors & I/O
Description
These sensors detect distance by measuring angles. They are particularly good at recognizing objects in front of any background. The color, shape and surface characteristics of the object have practically no influence on sensor switching performance. Also these sensors don’t influence each other if their light spots are pointed onto the same spot or against each other.
Features at a Glance
- High switching frequency
- Adjustable switching distance
- Large detection range
- Excellent ambient light suppression
Technical Data
Optical Data
| Range | 80 mm |
| Setting Range | 25 … 80 mm |
| Switching Hysteresis | see Table 1 |
| Light Source | Red Light |
| Service Life (T = +25 °C) | 100,000 h |
| Max. Ambient Light | 10,000 Lux |
| Light Spot Diameter | see Table 1 |
Electrical Data
| Supply Voltage | 10 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 40 mA |
| Switching Frequency | 1 kHz |
| Response Time | 500 µs |
| Temperature Drift | < 5 % |
| Temperature Range | -25 … 60 °C |
| Switching Output Voltage Drop | < 2.5 V |
| PNP Switching Output/Switching Current | 200 mA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Protection Class | III |
Mechanical Data
| Setting Method | Potentiometer |
| Housing Material | Brass, nickel-plated |
| Full Encapsulation | yes |
| Degree of Protection | IP67 |
| Connection | Cable; 4-wire |
| Cable length (L) | 2 m |
| Cable Jacket Material | PVC |
| Wire cross-section | 0.14 mm² |
| Weight | 54 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 2,489.75 a |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × MUTTER-M12-E001 hex nut 1 × sensor |
Output
| PNP NC, PNP NO | yes |
Adjustable parameters
| Circuit | NC NC+NO NO |
| All other parameters can be found in the product documentation. |
Standards and certificates
     |
Table 1
| Detection Range | 40 mm | 60 mm | 80 mm |
| Light Spot Diameter | 3 mm | 5 mm | 7 mm |
| Switching Hysteresis | < 2 mm | < 3 mm | < 8 mm |

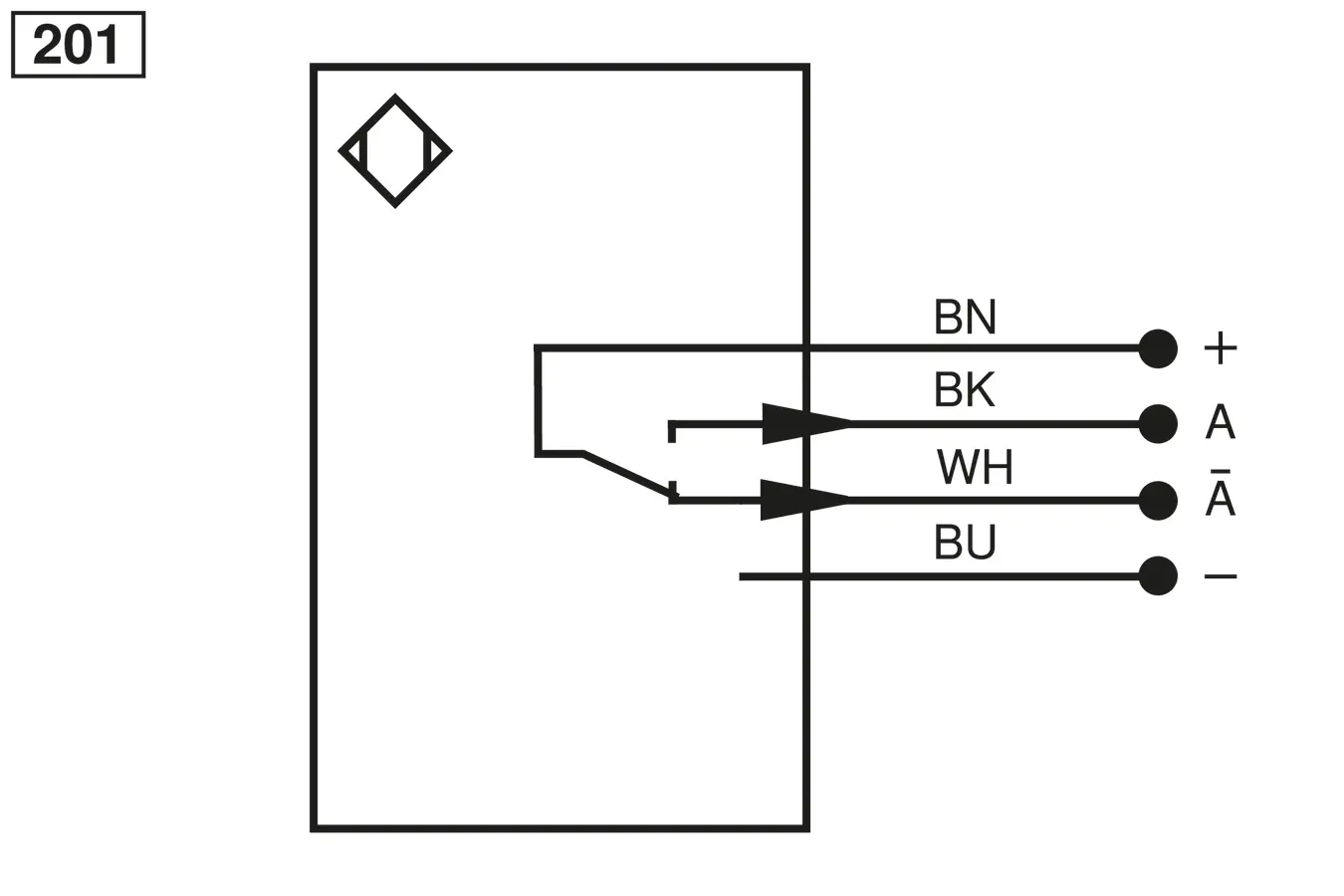

Connection Diagram
 |
Ctrl. Panel
|
05 = Switching Distance Adjuster
31 = Switching Status/Contamination-/Short Circuit Warning |
