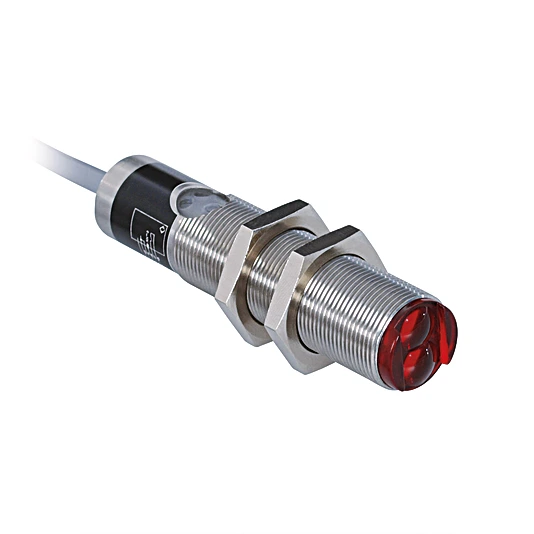

HD09MG-P24 Reflex Sensor with Background Suppression
Reflex Sensor
In Stock
$980.31
per unit
Applications: Sensors & I/O
Description
These sensors can measure distances and display analog output. Their high resolution and wide variety of measuring ranges allow them to be used in innumerable applications. The output signal is practically independent of the object’s color. This product has been discontinued, but is still available as a spare part. Successor
Features at a Glance
- Error message
- Red light
- Analog output
Technical Data
Optical Data
| Working Range | 35 … 85 mm |
| Measuring Distance | 60 mm |
| Measuring Range | 50 mm |
| Resolution | 500 µm |
| Linearity | < 2 % |
| Light Source | Red Light |
| Wavelength | 660 nm |
| Service Life (T = +25 °C) | 100,000 h |
| Max. Ambient Light | 10,000 Lux |
| Light Spot Diameter | 2 mm |
Electrical Data
| Supply Voltage | 18 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 40 mA |
| Cut-Off Frequency | 100 Hz |
| Response Time | 5 ms |
| Temperature Drift | 35 µm/K |
| Temperature Range | -10 … 60 °C |
| PNP Error Output/Switching Current | 200 mA |
| Analog Output | 0…10 V |
| Output Current Analog Output | 500 µA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Protection Class | III |
Mechanical Data
| Housing Material | Stainless steel, V2A (1.4305 / 303) |
| Full Encapsulation | yes |
| Degree of Protection | IP67 |
| Connection | Cable; 6-wire |
| Cable length (L) | 6 m |
| Cable Jacket Material | PVC |
| Wire cross-section | 0.14 mm² |
| Weight | 290 g |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × MUTTER-M18-E003 hex nut 1 × sensor |
Output
| Analog Output | yes |
Standards and certificates
     |
Connection Diagram
 |
Ctrl. Panel
|
12 = Analog Output Indicator
79 = Run/Error Indicator |
