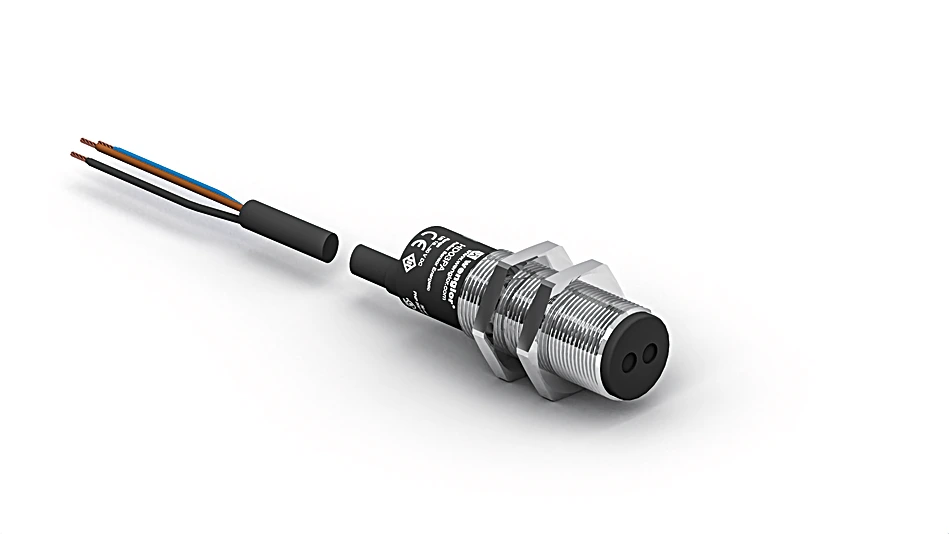

Description
Thanks to fine focusing optics the background is suppressed beyond 50 mm.
Features at a Glance
- Low-cost
- Quasi-background-suppression
- Fine focused optics
Technical Data
Optical Data
| Range | 30 mm |
| Switching Hysteresis | < 15 % |
| Light Source | Infrared Light |
| Service Life (T = +25 °C) | 100,000 h |
| Max. Ambient Light | 10,000 Lux |
| Opening Angle | 12 ° |
Electrical Data
| Supply Voltage | 10 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 40 mA |
| Switching Frequency | 1,500 Hz |
| Response Time | 330 µs |
| Temperature Drift | < 10 % |
| Temperature Range | -25 … 60 °C |
| Switching Output Voltage Drop | < 2.5 V |
| PNP Switching Output/Switching Current | 200 mA |
| Residual Current Switching Output | < 50 µA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Protection Class | III |
Mechanical Data
| Housing Material | Brass, nickel-plated |
| Full Encapsulation | yes |
| Degree of Protection | IP67 |
| Connection | Cable; 4-wire |
| Cable length (L) | 2 m |
| Cable Jacket Material | Plastic, PVC |
| Wire cross-section | 0.5 mm² |
| Weight | 183 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 2,337.8 a |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × MUTTER-M18-E001 hex nut 1 × sensor |
Output
| PNP NC, PNP NO | yes |
Adjustable parameters
| Circuit | NC NC+NO NO |
| All other parameters can be found in the product documentation. |
Standards and certificates
     |
Connection Diagram
 |
Ctrl. Panel
|
30 = Switching Status/Contamination Warning
05 = Switching Distance Adjuster |
