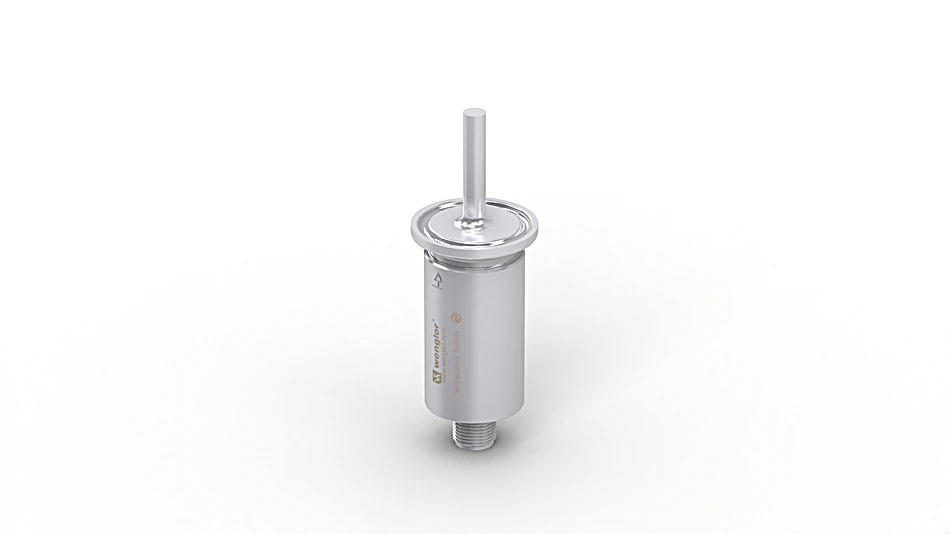

FXTT010 Temperature Sensor with IO-Link
Temperature Sensor
In Stock
$627.69
per unit
Applications: Sensors & I/O
Description
weFlux² Temperature Sensors ensure precise temperature measurement of liquids and gases in closed piping systems. Either 2 switching outputs, 1 switching output and 1 analog output or one 2-wire analog output is available depending on settings and connection configuration. The outputs can be configured as desired via IO-Link in order to flexibly adapt the sensors to the respective application.
Features at a Glance
- FDA compliant
- Ready for Industry 4.0 with IO-Link 1.1
- Response time T90: < 2 seconds
- Temperature measuring range: -50 … +150° C
Technical Data
Sensor-specific data
| Temperature Measurement Range | -50 … 150 °C |
| Setting Range | -50 … 150 °C |
| Medium | Liquids, gases |
| Measuring error | ± 0.5 °C |
| Resolution | > 11 bit |
| Response Time | < 2 s |
Environmental conditions
| Temperature of medium | -50 … 150 °C |
| Ambient temperature | -25 … 80 °C |
| Storage temperature | -25 … 80 °C |
| Pressure Resistance | 25 bar |
| EMC | DIN EN 61326-1 |
| Shock Resistance | IEC 60751 |
| Vibration resistance | IEC 60751 |
Electrical Data
| 2-wire supply power | 12 … 32 V DC |
| 3-wire supply power | 12 … 32 V DC |
| Current Consumption (Ub = 24 V) | < 15 mA |
| Number of Switching Outputs | 2 |
| Switching Output/Switching Current | ± 100 mA |
| Switching Output Voltage Drop | < 1.5 V DC |
| Analog Output | 4…20 mA |
| Signal source | Temperature |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Protection Class | III |
| Interface | IO-Link V1.1 |
Mechanical Data
| Setting Method | IO-Link |
| Housing Material | Stainless steel, V4A (1.4404/316L) |
| Material in contact with media | Stainless steel, V4A (1.4404/316L) |
| Degree of Protection | IP69K * IP68 * |
| Connection | M12 × 1; 4-pin |
| Process Connection | Clamp diameter: 34 mm |
| Process Connection Length (PCL) | 46 mm |
| Probe Length (PL) | 32 mm |
| Weight | 50 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 1,198.4 a |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × sensor |
Output
| Analog Output | yes |
| IO-Link | yes |
| PNP NO | yes |
Adjustable parameters
| Analog output | 0…10 V 4…20 mA |
| Output | Analog Output Push-pull NPN PNP |
| Circuit | NC NC/NO NO |
| Other parameters | 2 switching points Selectable measurement range |
| All other parameters can be found in the product documentation. |
