Description

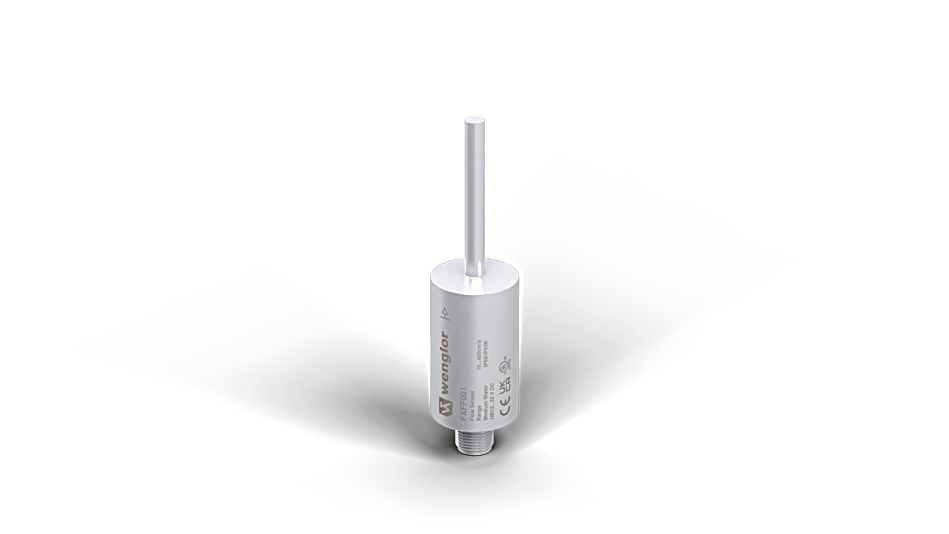

weFlux² flow sensors simultaneously measure flow velocity and the temperature of aqueous liquids regardless of position and flow direction. The advantage: The number of measuring points and the diversity of sensor variants are cut in half, ensuring the greatest possible flexibility when installing in closed piping systems. Either 2 switching outputs or 1 switching output and 1 analog output are available depending on application requirements. The outputs can be configured as desired via IO-Link in order to flexibly adapt the sensors to the respective application.
Features at a Glance
- A single sensor for flow and temperature
- FDA compliant
- Ready for Industry 4.0 with IO-Link 1.1
- Measurement independent of flow direction and instillation position
Technical Data
Sensor-specific data
| Measuring Range | 10 … 400 cm/s |
| Temperature of the medium, flow measurement | 0 … 125 °C** |
| Temperature of the medium, temperature measurement | -25 … 150 °C |
| Setting Range | 10 … 400 cm/s |
| Medium | Water |
| Measuring error (total) | ≤ 2 % *** |
| Temperature measurement error | ± 1 °C |
| MTTFd (EN ISO 13849-1) | 1,210.41 a |
| Response time in case of temperature jump | 10 s |
| Step response time T90 | < 5 s |
Environmental conditions
| Ambient temperature | -25 … 80 °C |
| Storage temperature | -25 … 80 °C |
| Pressure Resistance | 100 bar |
| EMC | DIN EN 61326-1 |
| Shock resistance per DIN IEC 68-2-27 | 30 g / 11 ms |
| Vibration resistance per DIN IEC 60068-2-6 | 5 g (10…2000 Hz) |
Electrical Data
| Supply Voltage | 12 … 32 V DC |
| Current Consumption (Ub = 24 V) | < 40 mA |
| Number of Switching Outputs | 2 |
| Number of analog outputs | 1 |
| Analog Output | 4…20 mA |
| Signal source | Flow |
| Response Time | 1 … 5 s |
| Switching Output/Switching Current | ± 100 mA |
| Switching Output Voltage Drop | < 2 V |
| Load Current Voltage Output | ≤ 20 mA |
| Operating delay time | < 10 s |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Protection Class | III |
| Interface | IO-Link V1.1 |
Mechanical Data
| Setting Method | IO-Link |
| Housing Material | Stainless steel, V4A (1.4404/316L) |
| Material in contact with media | Stainless steel, V4A (1.4404/316L) |
| Degree of Protection | IP69K * IP68 * |
| Connection | M12 × 1; 4-pin |
| Process Connection | Cutting/locking ring |
| Process Connection Length (PCL) | 59 mm |
| Probe Length (PL) | 50 mm |
| Rod diameter | 6 mm |
| Weight | 95 g |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × sensor |
Output
| Analog output flow | yes |
| IO-Link | yes |
| PNP NO | yes |
Adjustable parameters
| Output | Analog Output PNP Push-pull NPN |
| Analog output | 0…10 V 4…20 mA |
| Signal source | Flow Temperature |
| Circuit | NC NC/NO NO |
| Other parameters | 2 switching points Selectable measurement range |
| All other parameters can be found in the product documentation. |
