Description

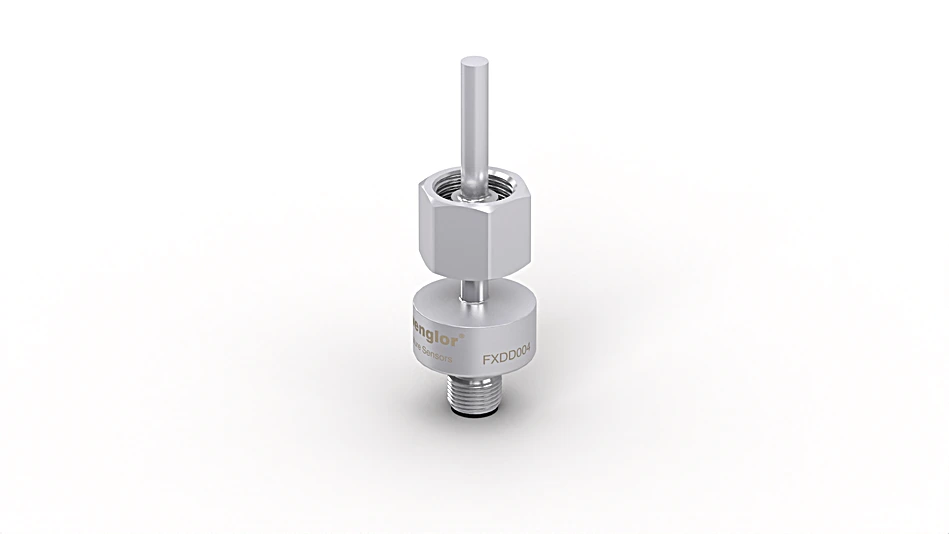

weFlux² Temperature Sensors ensure precise temperature measurement of liquids and gases in closed piping systems. It’s easy to incorporate the standardized PT100/PT1000 resistance value into the controller. The compact housing with a diameter of just 27 mm is made of V4A stainless steel and features an easy-to-clean surface. Thanks to their rugged housing and functional design, the Temperature Sensors are FDA compliant.
Features at a Glance
- Robust stainless steel housing with IP69K
- FDA compliant
- Response time T90: < 2 seconds
- Temperature measuring range: -50 … +200° C
Technical Data
Sensor-specific data
| Sensor element | PT100, Class B |
| Temperature Measurement Range | -50 … 200 °C |
| Medium | Liquids, gases |
| Response Time | < 2 s |
Environmental conditions
| Temperature of medium | -50 … 200 °C |
| Ambient temperature | -25 … 80 °C |
| Storage temperature | -25 … 80 °C |
| Pressure Resistance | 100 bar |
| Shock Resistance | IEC 60751 |
| Vibration resistance | IEC 60751 |
Mechanical Data
| Housing Material | Stainless steel, V4A (1.4404/316L) |
| Material in contact with media | Stainless steel, V4A (1.4404/316L) Rubber, FKM Rubber, FPM |
| Degree of Protection | IP68 * IP69K * |
| Connection | M12 × 1; 4-pin |
| Process Connection | Sealing cone M18 × 1,5 |
| Process Connection Length (PCL) | 64 mm |
| Probe Length (PL) | 32 mm |
| Weight | 130 g |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × sensor |
Output
| PT100 | yes |
Standards and certificates
    |
Connection Diagram
 |
