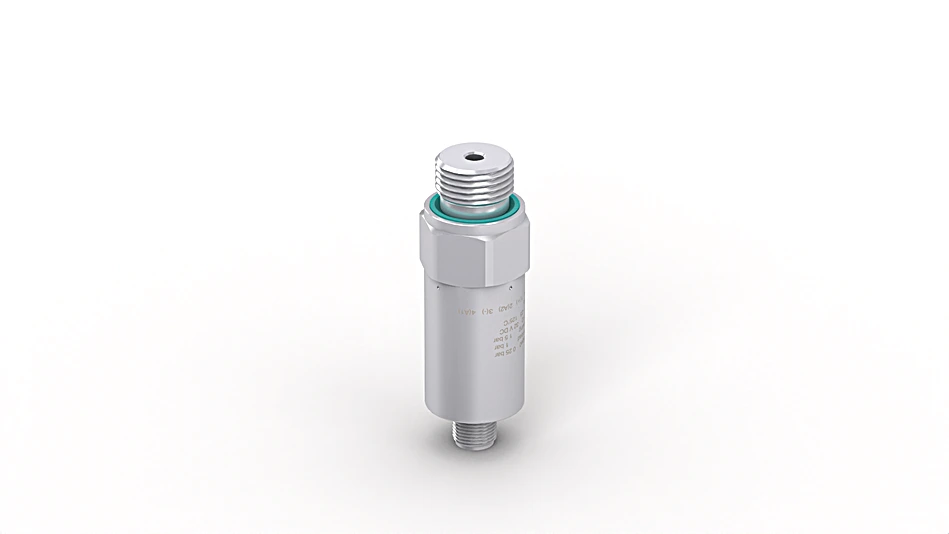

FX1P002 Pressure Sensor with IO-Link
Pressure Sensor
In Stock
$403.85
per unit
Applications: Sensors & I/O
Description
weFlux² pressure sensors precisely measure the relative pressure of any desired media. Depending on application requirements, either two switching outputs or one switching output and one analog output can be selected to output measured values. Furthermore, weFlux² pressure sensors offer new dimensions in individual parameter configurability. Sensor parameters, filter and output functions as well as the unit of measurement of the measured values (bar, PSI or Pascal) can be adjusted as needed.
Features at a Glance
- Individual parameter configuration via IO-Link 1.1
- Compact, laser-welded stainless steel 316L housing
- Quick sensor replacement thanks to data storage
- Precise measuring accuracy: ±0.5%
Technical Data
Sensor-specific data
| Measuring Range | -1 … 1 bar |
| Measurement Type | relative |
| Maximum overload pressure | 5 bar |
| Bursting pressure | 7.5 bar |
| Medium | Liquids, gases |
| Pressure response time (t90) | < 10 ms |
| Measuring error (total) | ± 0.5 % |
| Hysteresis | < ± 0.1 % |
| Linearity Deviation | < ± 0.5 % |
| Zero-point error | < ± 0.1 % |
| Repeat Accuracy | < ± 0.1 % |
| Temperature coefficient zero-point | <± 0,15% /10K |
| Temperature coefficient range | <± 0,2% /10K |
Environmental conditions
| Temperature of medium | -10 … 125 °C** |
| Ambient temperature | -10 … 80 °C |
| Storage temperature | -10 … 80 °C |
| EMC | DIN EN 61326-2-3 |
| Shock resistance per DIN IEC 68-2-27 | 50 g / 11 ms |
| Vibration resistance per DIN IEC 60068-2-6 | 10 g (10…2000 Hz) |
Electrical Data
| Supply Voltage | 12 … 32 V DC |
| Current Consumption (Ub = 24 V) | < 15 mA |
| Number of Switching Outputs | 2 |
| Switching Output/Switching Current | 100 mA |
| Switching Output Voltage Drop | < 1.5 V |
| Number of analog outputs | 1 |
| Analog Output | 4…20 mA |
| Signal source | Pressure |
| Resolution | > 11 bit |
| Current Output Load Resistance | < 500 Ohm |
| Voltage output load resistance | > 1 kOhm |
| Interface | IO-Link V1.1 |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Protection Class | III |
Mechanical Data
| Setting Method | IO-Link |
| Sensor element | Ceramic membrane |
| Housing Material | Stainless steel, V4A (1.4404/316L) |
| Material in contact with media | Stainless steel, V4A (1.4404 / 316L) Rubber, FKM Ceramic |
| Degree of Protection | IP65 * |
| Connection | M12 × 1; 4-pin |
| Process Connection | G 1/2″ |
| Thread | External thread |
| Seal material | Fluororubber, FKM |
| Weight | 270 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 1,157.11 a |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × sensor |
Output
| Analog Output | yes |
| PNP NO | yes |
| IO-Link | yes |
Adjustable parameters
| Analog output | 0…10 V 4…20 mA |
| Output | Analog Output PNP Push-pull NPN |
| Circuit | NC NC/NO NO |
| Other parameters | 2 switching points |
| All other parameters can be found in the product documentation. |
