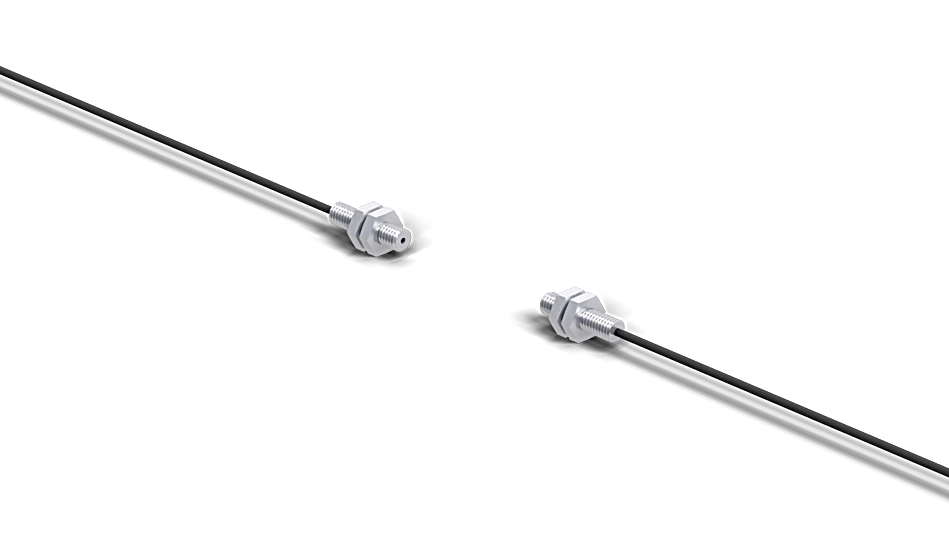

FTS04-2M-05 Plastic Fiber-Optic Cable Through-Beam Mode
Plastic Fiber-Optic Cable
In Stock
$177.69
per unit
Applications: Sensors & I/O
Description
Plastic fiber-optic cables are very flexible and suitable for use in confined spaces. The fiber optics are supplied in 2 m lengths. Special lengths of up to 50 m are possible. Users can shorten the fiber optics using the Z0015 cutting tool.
Features at a Glance
- Especially suitable in applications where only minimal space is available
- Fiber-optic cable can be cut to length by the cutting tool
Technical Data
Optical Data
| Fiber Core Diameter | 0.5 mm |
| Fiber | Step Index |
| Fiber Distribution | parallel arrangement |
| Range with P1XD0xx | 130 mm |
| Range P1XD10x/11x | 170 mm |
| Range P1XD12x/13x | 150 mm |
| Range P1XD2xx red light | 140 mm |
| Range P1XD2xx blue light | 170 mm |
| Range P1XD2xx pink light | 200 mm |
| Range with LA29 | 2,500 mm |
| Opening Angle | 55 ° |
Mechanical Data
| Cable type | Standard |
| Temperature Range | -40 … 70 °C |
| Bending Radius | 15 mm |
| Fiber-Optic Length L | 2 m |
| Jacket Material | Plastic, PE |
| Fiber Optic Material | Plastic, PMMA |
| Material End Sleeve | Stainless steel, V2A (1.4305 / 303) |
| End sleeve shape | Standard |
| Jacket Diameter | 1 mm |
| Light Emission | straight |
| Weight | 13 g |
General Data
| Packaging unit | 2 Pieces |
| Scope of delivery | 1 × Z1XC001 mounting adapter 1 × Z0015 cutting tool 2 × fiber-optic cables 4 × M3 hex nuts |
