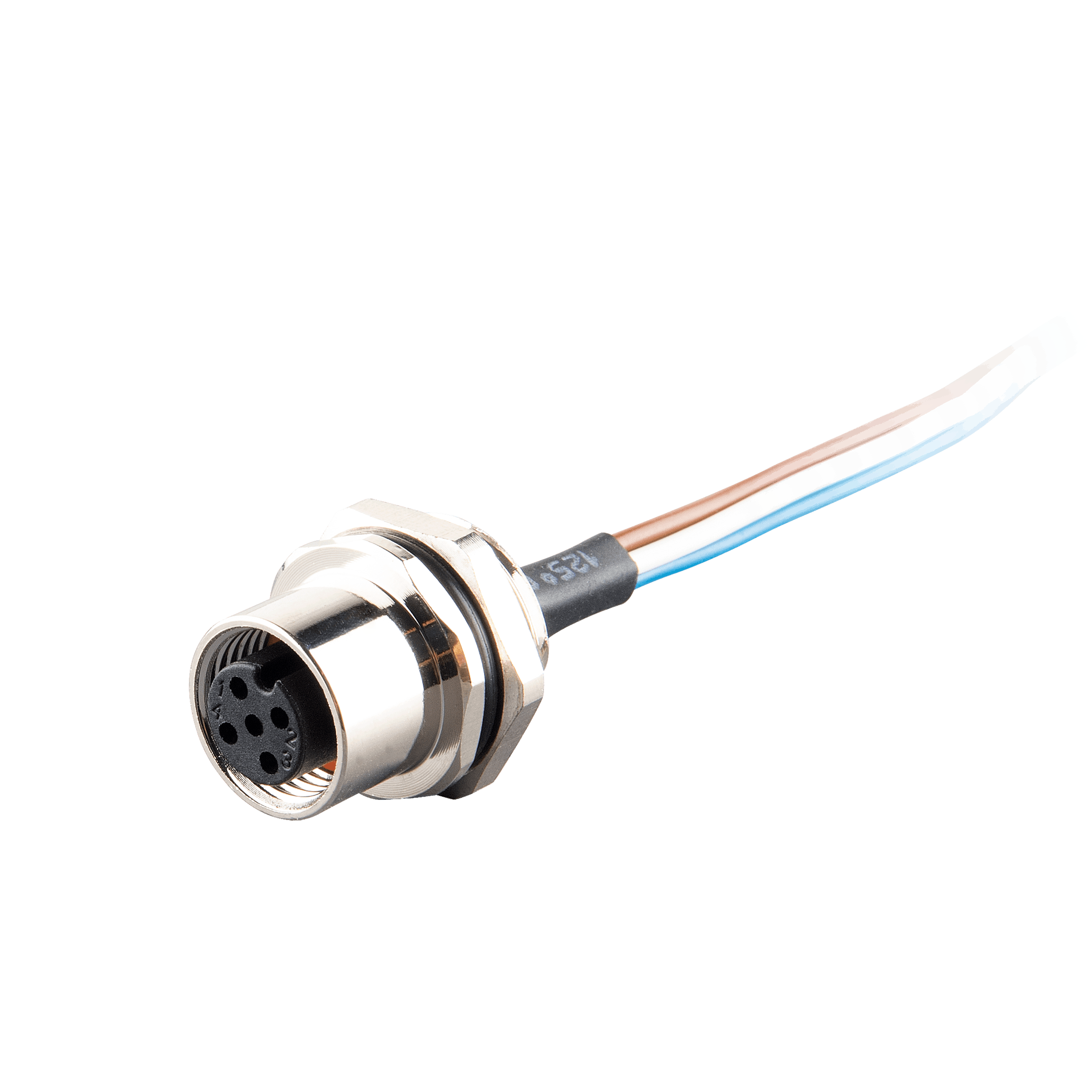

FO12.4-1/M16/F Flange-Mount Bulkhead Connector
Flange-Mount Bulkhead Connector, with cable, M12 A-code 4-pin Straight Female, M16 Hole dimension, Front mount, with PVC Cable, 1 m
In Stock
$10.47
per unit
Applications: Sensors & I/O
Technical Data
| Rated current | 4 A |
| Nut/bolt material | Nickel plated brass |
| Coating contact material | Gold-plated copper |
| IP rating | IP67 |
| Cable jacket material | Without Cable jacket |
| Drag chain | Fixed installation |
| Shielded/Unshielded | NO |
| Rated voltage | 250 V AC/DC |
| Material contact | TPU |
| Cable jacket color | Without Cable jacket |
| Wire insulation material | PVC |
| Wire insulation color | BN,WH,BU,BK |
| Cable length | 1 m |
| Hole dimensions | M16 |
| Installation methods | Front mount |
| Wire cross-section | Max. 1.0 mm² |
| Termination Type | With cable |
| Head 1 Type | M12 |
| Head 1 Number of contacts | 4 |
| Product type | Flange-Mount Bulkhead Connector |
| Head 1 Coding | A-code |
