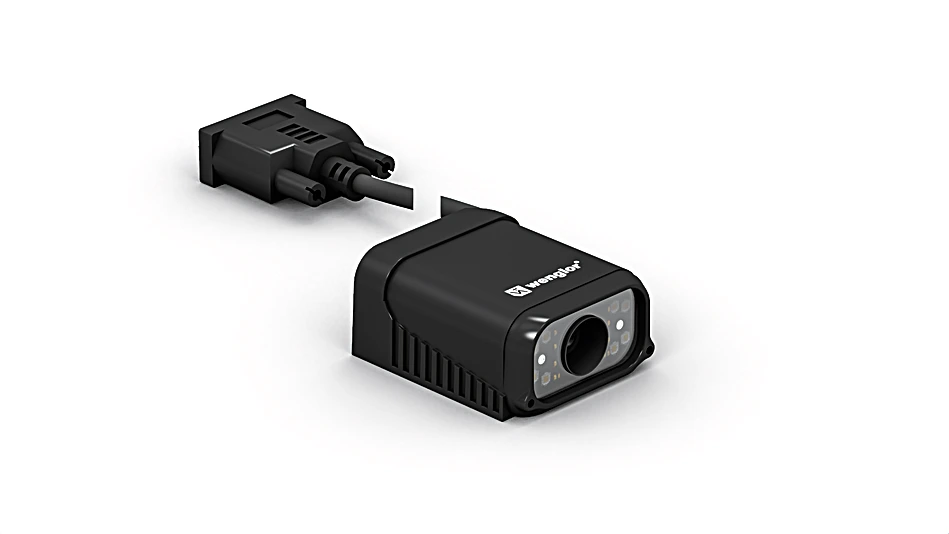

FIS-0004-0101 1D/2D Code Scanner
1D/2D Code Scanner
In Stock
$2,270.15
per unit
Applications: Machine Vision
Description
These 2D code scanners are suitable for omnidirectional scanning of 1D and 2D codes. The following code types can be processed: Code39, Code128, Code93, UPC/EAN, IBM BC412, Interleaved 2 of 5, Codabar, DataMatrix, PDF417, QR-Code, RSS family, Micro PDF. This product has been discontinued. Click here to display similar products.
Features at a Glance
- High depth of focus
- For static applications
- Teach-in
Technical Data
Optical Data
| Barcode Density | Medium density |
| Read Range | 36 … 132 mm |
| Resolution | 640 × 480 Pixel |
| Focal distance | 11.12 mm |
| Pixel Size | 5.2 × 5.2 µm |
| Light Source | Red Light |
| Wavelength | 617 nm |
| Service Life (T = +25 °C) | 40,000 h |
| Max. Ambient Light | 3,000 Lux |
| Barcode Printing Contrast | > 20 % |
Environmental conditions
| Temperature Range | 0 … 40 °C |
Electrical Data
| Supply Voltage | 5 V DC |
| Power Consumption | 1,970 mW |
| Scan Rate | 10 scans/sec |
| Switching Output | TTL |
| Number of Switching Outputs | 3 |
| Switching Output/Switching Current | 10 mA |
| Network Possibilities | Daisy Chain, Multidrop |
| Interface | RS-232/422/485 |
| Transmission rate | 115.2 Kbit/s |
| Trigger Input | NPN |
| Signal Input | NPN |
| Number of Signal Inputs | 1 |
| Acoustic signal | yes |
Mechanical Data
| Housing Material | Aluminum |
| Degree of Protection | IP54 |
| Connection | SubD 15-pin |
| Minimum object distance | 36 mm |
| Weight | 222 g |
Output
| TTL positive/negative switchable | yes |
Standards and certificates
    |
Connection Table
 |
Ctrl. Panel
|
04 = Function Indicator
42 = Reading Performance 100 %/Good Read 43 = Reading Performance 80 %/Status/Trigger 44 = Reading Performance 60 % 45 = Reading Performance 40 % 46 = Reading Performance 20 % 06 = Teach Button |
