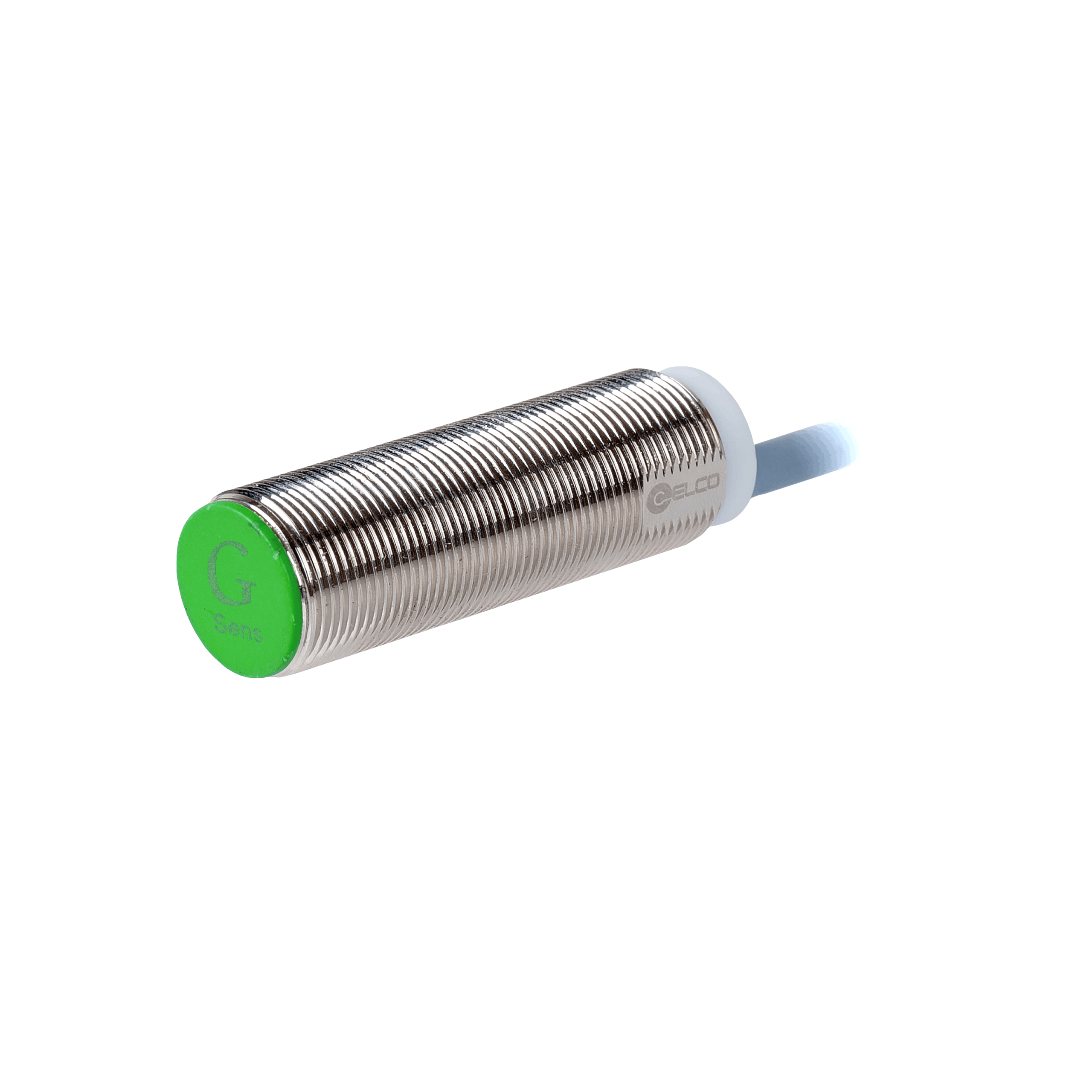

FI8-G18-OA41L Inductive Sensor
Inductive Sensor, Threaded cylindrical housing M18, Switching distance 8 mm, Flush, IP68, -30…85 °C, 2-wire AC/DC, Cable 2 m
In Stock
$28.72
per unit
Applications: Sensors & I/O
Technical Data
| Switching frequency | 40 Hz |
| Connection | Cable |
| IP rating | IP68 |
| Ambient temperature | -30 … +85 ℃ |
| Cable type | PVC |
| Sensing surface material | PBT |
| Housing material | Nickel-plated brass |
| Cable length | 2 m |
| Output type | DC / AC |
| Sensing range | 8 mm |
| Supply voltage | 20 … 250 V AC/DC |
| Load current | DC ≤ 100 mA / AC ≤ 200 mA |
| Output status | NO |
| External dimensions | M18 x 1 |
| Mounting | Flush |
| Product size | M18 x 59 mm |
