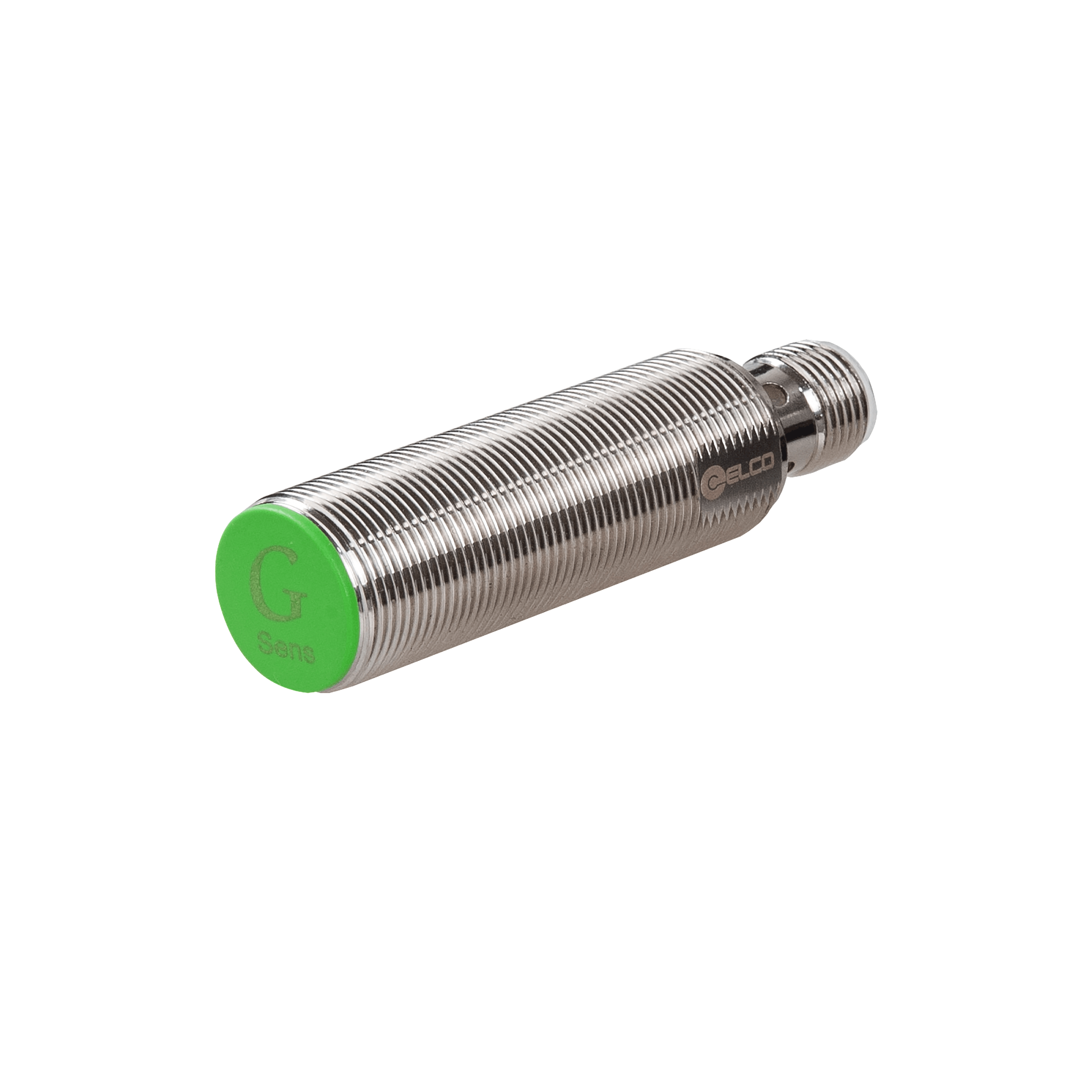

FI8-G18-CN6L-Q12 Inductive Sensor
Inductive Sensor, Threaded cylindrical housing M18, Switching distance 8 mm, Flush, IP68, -30…85 °C, NPN NC, M12 connector
In Stock
$25.48
per unit
Applications: Sensors & I/O
Technical Data
| Product size | M18 x 65 mm |
| Sensing range | 8 mm |
| External dimensions | M18 x 1 |
| Output type | NPN |
| Mounting | Flush |
| Output status | NC |
| Housing material | Stainless steel |
| Connection | M12, 4-pin |
| Sensing surface material | PBT |
| Switching frequency | 500 Hz |
| Supply voltage | 10 … 30 V DC |
| Load current | ≤ 200 mA |
| Ambient temperature | -30 … +85 ℃ |
| IP rating | IP68 |
