FI5-M18E-CA41L-Q12 Inductive Sensor
Elco Automation | FI5-M18E-CA41L-Q12

FI5-M18E-CA41L-Q12 Inductive Sensor

Inductive Sensor, Threaded cylindrical long housing M18, Switching distance 5 mm, Flush, IP67, -25…70 °C, AC/DC NC, M12 connector

In Stock
$34.28 per unit

Applications: Sensors & I/O

Technical Data

Sensing range 5 mm
Mounting Flush
Output status NC
External dimensions M18 x 1
Output type DC / AC
Product size M18 x 62 mm
Supply voltage 20 … 250 V AC/DC
Sensing surface material PBT
IP rating IP67
Housing material Nickel-plated brass
Load current DC ≤ 100 mA / AC ≤ 200 mA
Connection M12, 4-pin
Switching frequency 40 Hz
Ambient temperature -25 … +70 ℃

Documentation

3D Drawings

  • Icon

    3D Drawing - CAD_SI_M18E-F-BASA-Q12_V1.0.stp

    1 file(s) 2.05 MB
    Download
  • Icon

    3D Drawing - CAD_SI_M18E-F-BASA_V1.0.stp

    1 file(s) 1.63 MB
    Download

Certificates & Compliance

  • Icon

    CE - CE_SI_Metal-Housing_V1.0_EN.pdf

    1 file(s) 410.20 KB
    Download

Datasheets

  • Icon

    Datasheet - DS_SI_M18E_V1.1_EN.pdf

    1 file(s) 769.46 KB
    Download
  • Icon

    Datasheet - ELCO_通用M系列_DataSheet_CN.pdf

    1 file(s) 1.48 MB
    Download

Technical Manuals

  • Icon

    Manual - UM_SI_Inductive_V1.0_EN&CN.pdf

    1 file(s) 3.28 MB
    Download

Related Products

OS4-AKS30LN6 Photoelectric Sensor
Elco Automation

OS4-AKS30LN6 Photoelectric Sensor

Photoelectric Sensor, OS4-Series, Diffused fixed BGS, Point light, Operating range 5…30 mm, NPN, L.O, 10…30V DC, -10…55°C, Switching frequency 800 Hz, IP67, Cable 2 m

$60.21

OM18-K100VN6 Photoelectric Sensor
Elco Automation

OM18-K100VN6 Photoelectric Sensor

Photoelectric Sensor, OM18-Series, Diffused, Infrared beam, Operating range 100 mm, NPN, L.O + D.O, 10…30V DC, -25…65°C, Switching frequency 100 Hz, IP67, Cable 2 m

$36.08

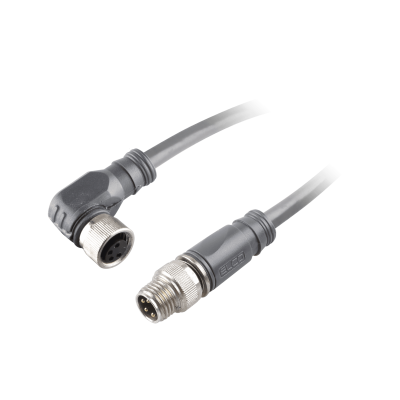

CBO8.4-1-C8.4/P Sensor-Actuator Cordset
Elco Automation

CBO8.4-1-C8.4/P Sensor-Actuator Cordset

Sensor-Actuator Cordset, Double-ended, M8 A-code 4-pin Angled Female, to M8 A-code 4-pin Straight Male, with PUR grey jacket 0.25mm² (24 AWG) 5 million bending cycles cable, 1 m

$13.15

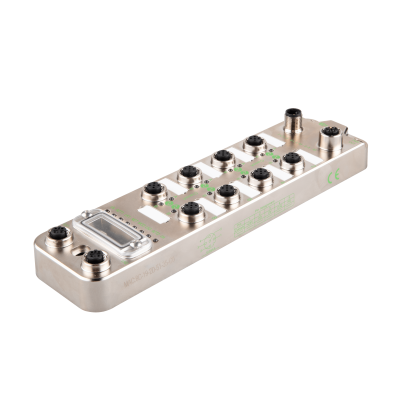

FCEN-8LKM-8A-M IO-Link Master
