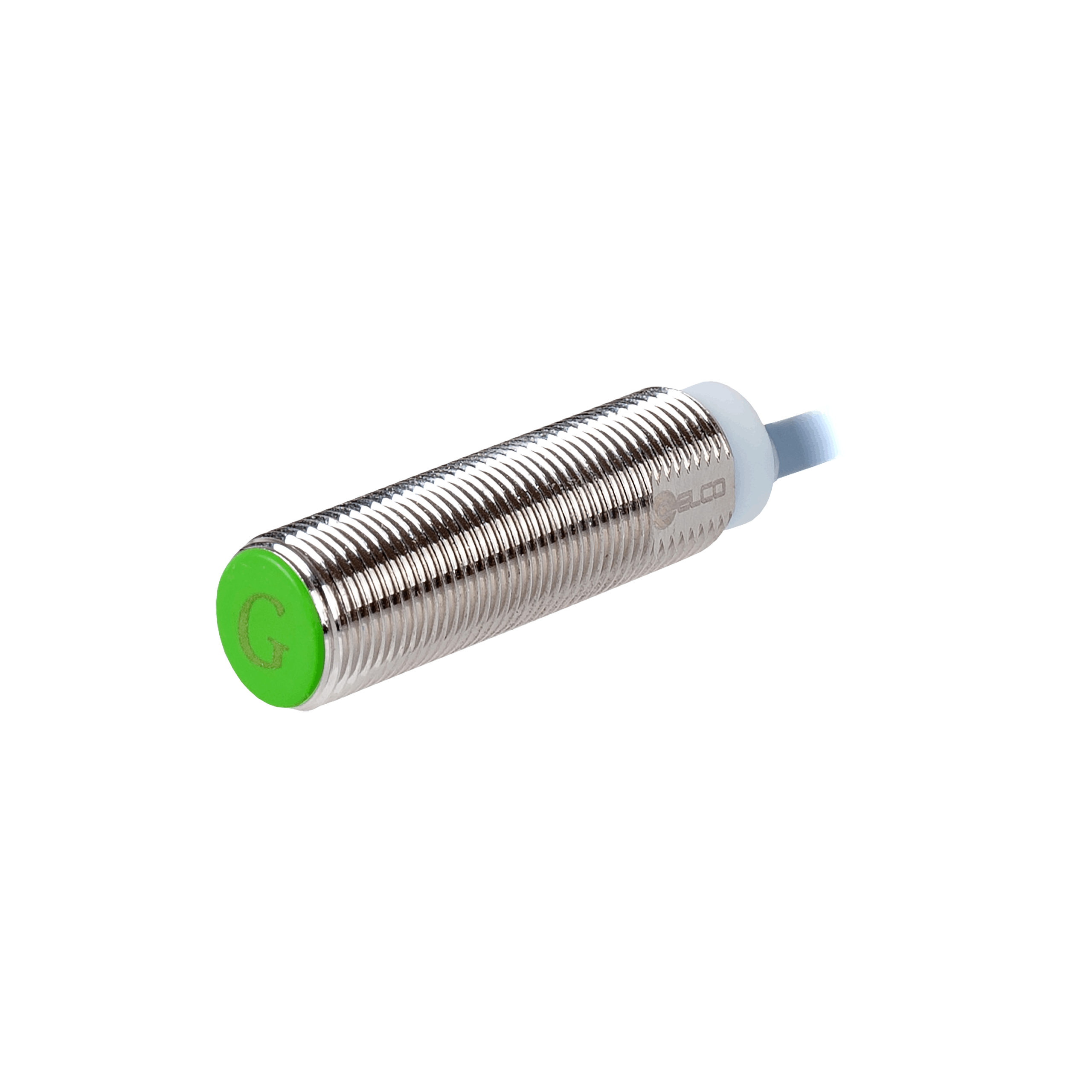

FI4-ZG12-CP6L Inductive Sensor
Elco Automation | FI4-ZG12-CP6L

FI4-ZG12-CP6L Inductive Sensor

Inductive Sensor, Threaded cylindrical stainless steel housing M12, Switching distance 4 mm, Flush, IP68, -40…85 °C, PNP NC, Cable PUR 2 m

In Stock
$28.72 per unit

Applications: Sensors & I/O

Technical Data

Ambient temperature -40 … +85 ℃
Connection Cable
Cable type PVC
Sensing range 4 mm
Supply voltage 10 … 30 V DC
Housing material Stainless steel
Sensing surface material PBT
Switching frequency 650 Hz
Load current ≤ 200 mA
Output status NC
Output type PNP
External dimensions M12 x 1
Mounting Flush
Product size M12 x 58 mm
Cable length 2 m
IP rating IP68

Documentation

3D Drawings

  • Icon

    3D Drawing - CAD_SI_ZG12-F-PN_V1.0.stp

    1 file(s) 2.42 MB
    Download

Certificates & Compliance

  • Icon

    CE - CE_SI_Metal-Housing_V1.0_EN.pdf

    1 file(s) 410.20 KB
    Download

Datasheets

  • Icon

    Datasheet - DS_SI_ZG12_V1.2_EN.pdf

    1 file(s) 438.95 KB
    Download
  • Icon

    Datasheet - ELCO_ZG系列_DataSheet_CN.pdf

    1 file(s) 372.62 KB
    Download
  • Icon

    FE 4 Datasheet

    1 file(s) 438.78 KB
    Download

Technical Manuals

  • Icon

    Manual - UM_SI_Inductive_V1.0_EN&CN.pdf

    1 file(s) 3.28 MB
    Download
  • Icon

    FE 4 - Technical sheet

    1 file(s) 129.39 KB
    Download
