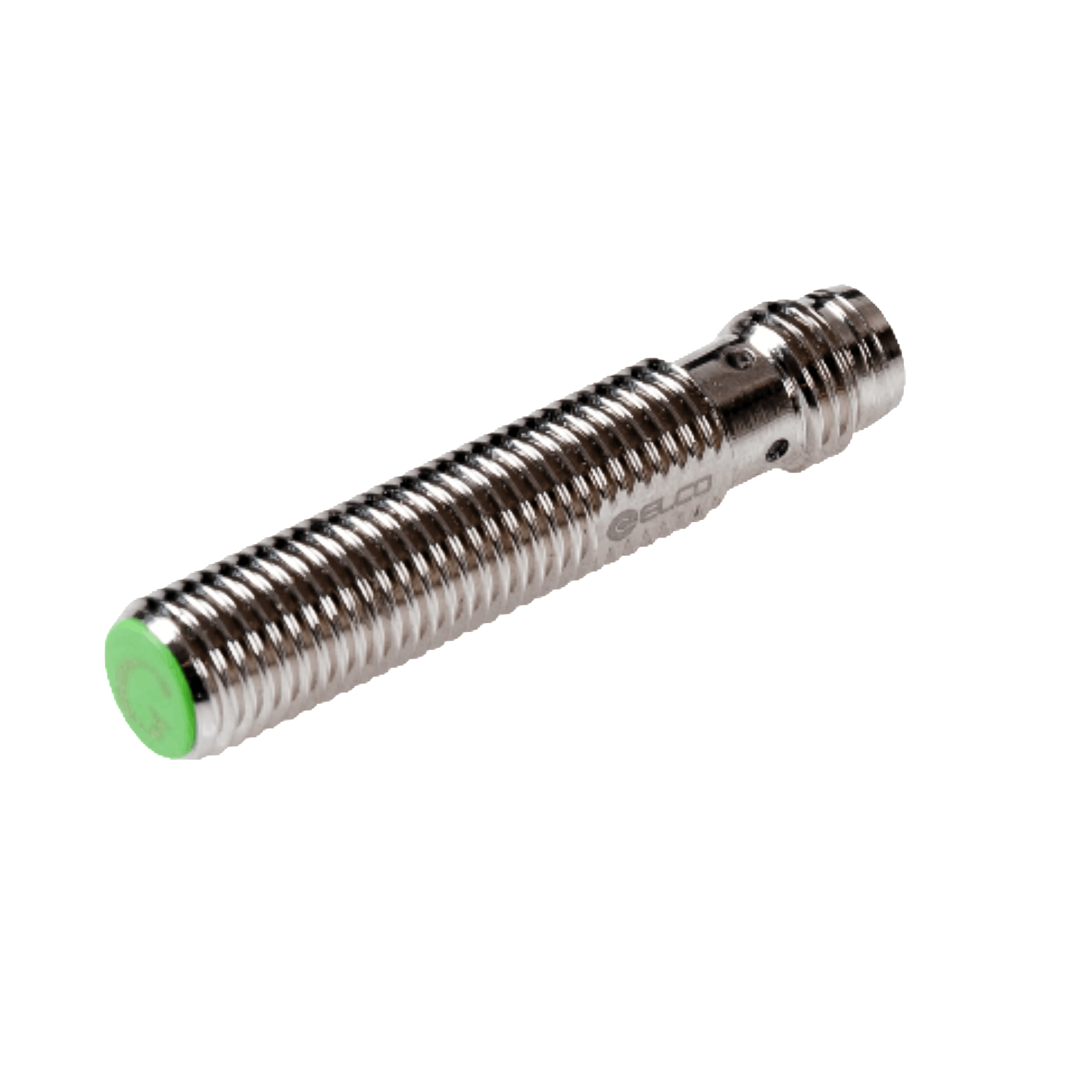

FI4-G12-OA41L-Q12 Inductive Sensor
Inductive Sensor, Threaded cylindrical housing M12, Switching distance 4 mm, Flush, IP68, -30…85 °C, 2-wire AC/DC, M12 connector
In Stock
$24.09
per unit
Applications: Sensors & I/O
Technical Data
| Connection | M12, 4-pin |
| Sensing range | 4 mm |
| Sensing surface material | PBT |
| Housing material | Nickel-plated brass |
| Switching frequency | 40 Hz |
| Supply voltage | 20 … 250 V AC/DC |
| Ambient temperature | -30 … +85 ℃ |
| Load current | DC ≤ 100 mA / AC ≤ 200 mA |
| Output type | DC / AC |
| Output status | NO |
| External dimensions | M12 x 1 |
| Mounting | Flush |
| Product size | M12 x 74 mm |
| IP rating | IP68 |
