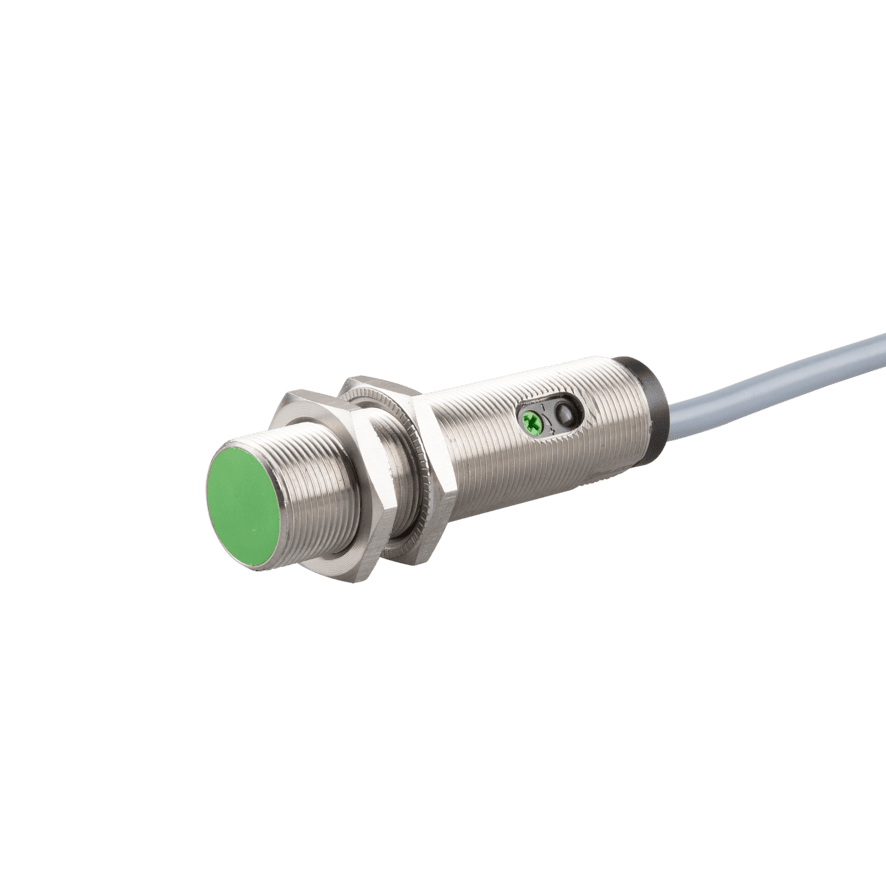

FI3D-KM18-CP6 Inductive Sensor
Inductive Sensor, Threaded cylindrical housing M18, High pressure up to 500 bar, Switching distance 3 mm, Flush, IP68, -25…70 °C, PNP NC, 2 m cable
In Stock
$68.55
per unit
Applications: Sensors & I/O
Technical Data
| External dimensions | M18 x 1 |
| Product size | M18 x 61.5 mm |
| Output type | PNP |
| Special performance | Pressure range MAX 500bar |
| Sensing range | 3 mm |
| IP rating | IP68 |
| Cable length | 2 m |
| Supply voltage | 10 … 30 V DC |
| Connection | Cable |
| Cable type | PVC |
| Ambient temperature | -25 … +70 ℃ |
| Output status | NC |
| Switching frequency | 800 Hz |
| Load current | ≤ 200 mA |
| Housing material | Stainless steel |
| Mounting | Flush |
| Sensing surface material | Ceramics |
