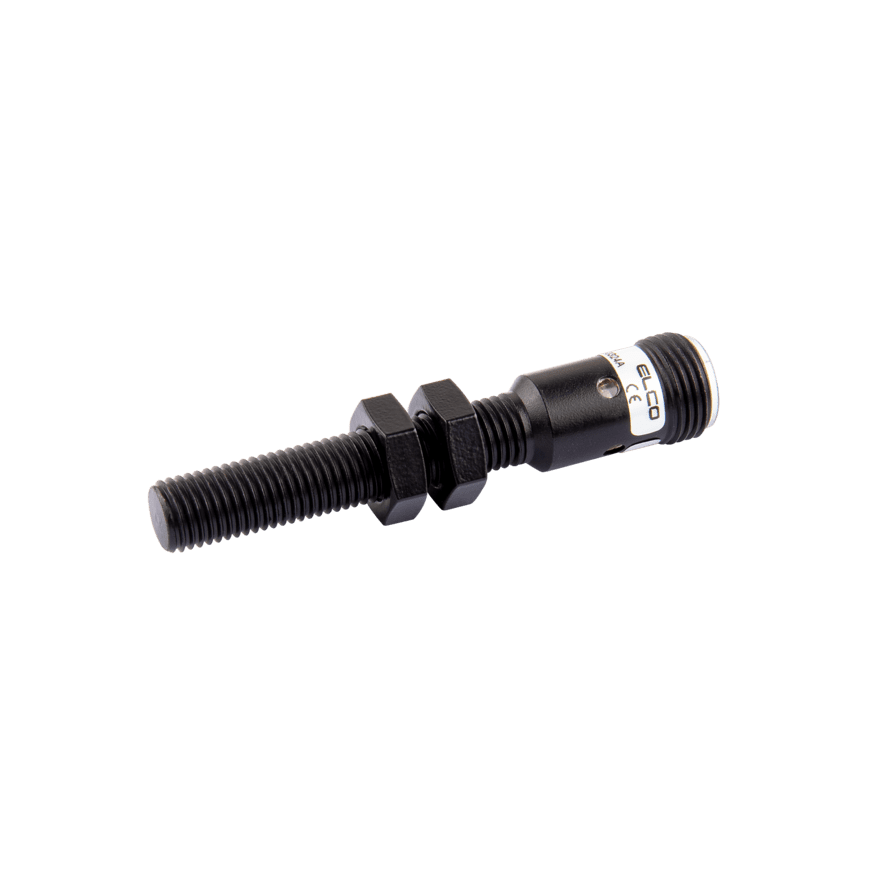

FI2A-TM08-CP6L-Q12 Inductive Sensor
Inductive Sensor, Threaded cylindrical housing M08, PTFE anti interference series , Switching distance 2 mm, Flush, IP67, -25…70 °C, NPN, NC, M12 connector
In Stock
$37.98
per unit
Applications: Sensors & I/O
Technical Data
| Sensing range | 2 mm |
| Connection | M12, 4-pin |
| Output status | NC |
| Housing coating | Teflon |
| Housing material | Nickel-plated brass |
| Sensing surface material | PBT |
| Switching frequency | 1000 Hz |
| Load current | ≤ 200 mA |
| Supply voltage | 10 … 30 V DC |
| Output type | PNP |
| Ambient temperature | -25 … +70 ℃ |
| Inductive surface coating | Teflon |
| External dimensions | M8 x 1 |
| Mounting | Flush |
| Product size | M8 x 61.5 mm |
| IP rating | IP67 |
