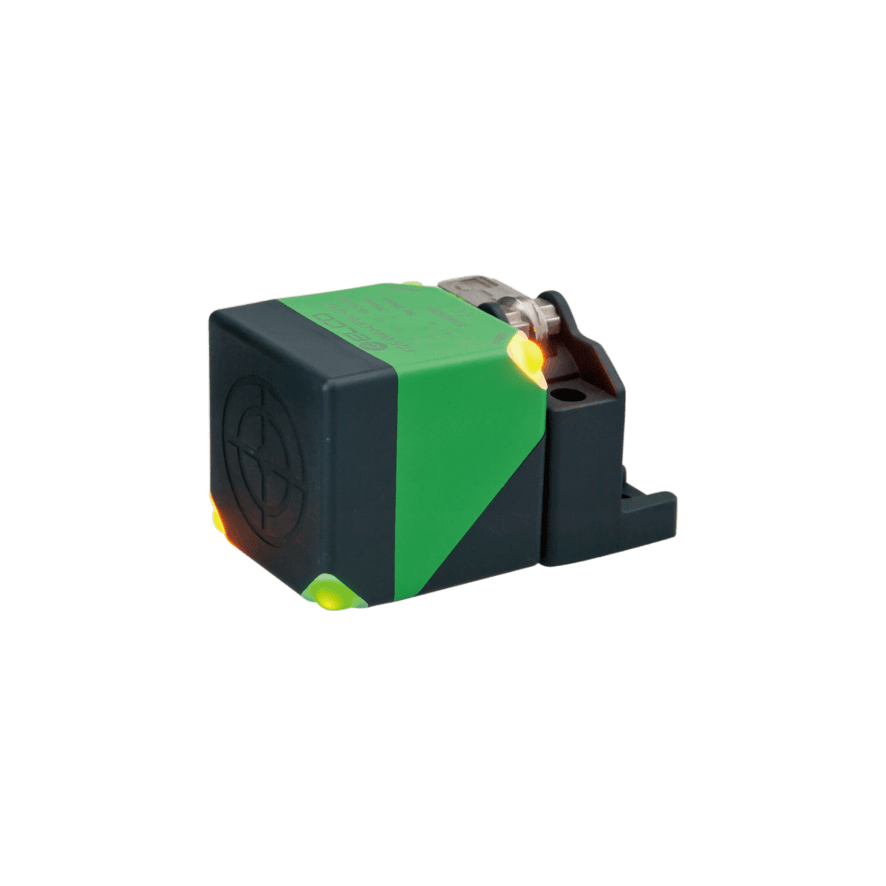

FI20-C40-NE-Q12 Inductive Sensor
Elco Automation | FI20-C40-NE-Q12

FI20-C40-NE-Q12 Inductive Sensor

Inductive Sensor, Rectangular housing W40, Switching distance 20m m, Flush, IP67, -25…70 °C, NAMUR NC, M12 connector

In Stock
$60.21 per unit

Applications: Sensors & I/O

Technical Data

External dimensions Square
Connection M12, 4-pin
Sensing surface material PA
Output type NAMUR
Sensing range 20 mm
Ambient temperature -25 … +70 ℃
Output status NC
Housing material PA
Switching frequency 150 Hz
Supply voltage 7.7 … 9 V DC
Mounting Flush
Product size 66 x 40 x 40 mm
IP rating IP67

Documentation

3D Drawings

  • Icon

    3D Drawing - ELCO_Fi20-C40-NE-Q12.STEP

    1 file(s) 1.02 MB
    Download

Certificates & Compliance

  • Icon

    ATEX - ELCO_NAMUR_ATEX.pdf

    1 file(s) 995.75 KB
    Download
  • Icon

    CE - ELCO_Metal Housing_CE.pdf

    1 file(s) 410.20 KB
    Download

Datasheets

  • Icon

    Datasheet - ELCO_NAMUR-C40_DataSheet_EN.pdf

    1 file(s) 263.22 KB
    Download
  • Icon

    Datasheet - ELCO_本安系列_DataSheet_CN.pdf

    1 file(s) 416.11 KB
    Download

Technical Manuals

  • Icon

    Manual - ELCO_Inductive Sensors Introduction_Manual_EN.pdf

    1 file(s) 355.53 KB
    Download
