FI2-M12SS-CP6L Inductive Sensor
Elco Automation | FI2-M12SS-CP6L

FI2-M12SS-CP6L Inductive Sensor

Inductive Sensor, Short threaded cylindrical housing M12, Switching distance 2 mm, Flush, IP67, -25…70 °C, PNP NC, Cable 2 m

In Stock
$22.70 per unit

Applications: Sensors & I/O

Technical Data

IP rating IP67
Cable type PVC
Connection Cable
Housing material Nickel-plated brass
Sensing surface material PBT
Cable length 2 m
Ambient temperature -25 … +70 ℃
Sensing range 2 mm
Switching frequency 1000 Hz
Supply voltage 10 … 30 V DC
Load current ≤ 200 mA
Output status NC
Output type PNP
External dimensions M12 x 1
Mounting Flush
Product size M12 x 21.9 mm

Documentation

3D Drawings

  • Icon

    3D Drawing - CAD_SI_M12SS-F-DPN_V1.0.stp

    1 file(s) 1.27 MB
    Download

Certificates & Compliance

  • Icon

    CE - CE_SI_Metal-Housing_V1.0_EN.pdf

    1 file(s) 410.20 KB
    Download

Datasheets

  • Icon

    Datasheet - DS_SI_M12SS_V1.2_EN.pdf

    1 file(s) 325.37 KB
    Download
  • Icon

    Datasheet - ELCO_微小尺寸型_DataSheet_CN.pdf

    1 file(s) 470.85 KB
    Download

Technical Manuals

  • Icon

    Manual - UM_SI_Inductive_V1.0_EN&CN.pdf

    1 file(s) 3.28 MB
    Download

Related Products

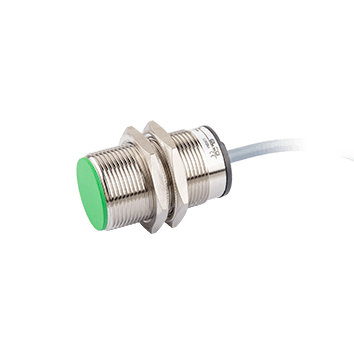

FI10-M30S-CD6L Inductive Sensor
