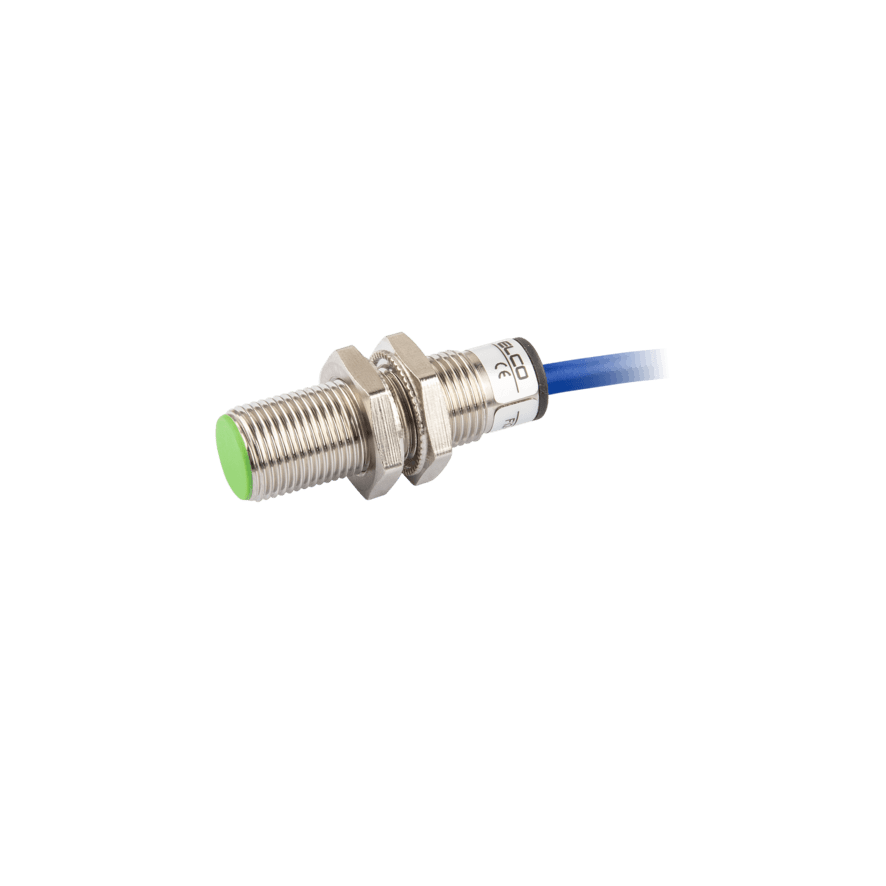

FI2-M12S-NE Inductive Sensor
Elco Automation | FI2-M12S-NE

FI2-M12S-NE Inductive Sensor

Inductive Sensor, Short threaded cylindrical housing M12, Switching distance 2 m m, Flush, IP67, -25…70 °C, NAMUR NC, Cable 2 m

In Stock
$17.60 per unit

Applications: Sensors & I/O

Technical Data

Output type NAMUR
External dimensions M12 x 1
Cable type PVC
Cable length 2 m
Connection Cable
Product size M12 x 31.9 mm
Sensing range 2 mm
Sensing surface material PBT
IP rating IP67
Ambient temperature -25 … +70 ℃
Output status NC
Housing material Nickel-plated brass
Switching frequency 1000 Hz
Supply voltage 7.7 … 9 V DC
Mounting Flush

Documentation

3D Drawings

  • Icon

    3D Drawing - ELCO_Fi2-M12S-NE.STEP

    1 file(s) 2.08 MB
    Download

Certificates & Compliance

  • Icon

    ATEX - ELCO_NAMUR_ATEX.pdf

    1 file(s) 995.75 KB
    Download
  • Icon

    CE - ELCO_Metal Housing_CE.pdf

    1 file(s) 410.20 KB
    Download

Datasheets

  • Icon

    Datasheet - ELCO_NAMUR-M12S_DataSheet_EN.pdf

    1 file(s) 342.54 KB
    Download
  • Icon

    Datasheet - ELCO_本安系列_DataSheet_CN.pdf

    1 file(s) 416.11 KB
    Download

Technical Manuals

  • Icon

    Manual - ELCO_Inductive Sensors Introduction_Manual_EN.pdf

    1 file(s) 355.53 KB
    Download
