FI2-M12-CN6L-Q12/TB40 Inductive Sensor
Elco Automation | FI2-M12-CN6L-Q12/TB40

FI2-M12-CN6L-Q12/TB40 Inductive Sensor

Inductive Sensor, Threaded cylindrical housing M12, Switching distance 2 mm, Flush, IP67, -40…70 °C, NPN NC, M12 connector

In Stock
$19.45 per unit

Applications: Sensors & I/O

Technical Data

Sensing range 2 mm
Connection M12, 4-pin
Sensing surface material PBT
Output status NC
Housing material Nickel-plated brass
Switching frequency 1000 Hz
Output type NPN
Supply voltage 10 … 30 V DC
Ambient temperature -40 … +70 ℃
Load current ≤ 200 mA
Product size M12 x 52 mm
Mounting Flush
External dimensions M12 x 1
IP rating IP67

Documentation

3D Drawings

  • Icon

    3D Drawing - ELCO_Fi2-M12-CN6L-Q12-TB40.STEP

    1 file(s) 2.81 MB
    Download

Certificates & Compliance

  • Icon

    CE - ELCO_Metal Housing_CE.pdf

    1 file(s) 410.20 KB
    Download

Datasheets

  • Icon

    Datasheet - ELCO_Low Temperature series-M12_DataSheet_EN.pdf

    1 file(s) 681.73 KB
    Download
  • Icon

    Datasheet - ELCO_耐低温系列_DataSheet_CN.pdf

    1 file(s) 938.32 KB
    Download

Technical Manuals

  • Icon

    Manual - ELCO_Inductive Sensors Introduction_Manual_EN.pdf

    1 file(s) 355.53 KB
    Download

Related Products

CO8.3-5-C8.3/L Sensor-Actuator Cordset
Elco Automation

CO8.3-5-C8.3/L Sensor-Actuator Cordset

Sensor-Actuator Cordset, Double-ended, M8 A-code 3-pin Straight Female, with PNP LED, to M8 A-code 3-pin Straight Male, with PVC grey jacket 0.25mm² (24 AWG) cable, 5 m

$13.20

CO12.4-15/P Sensor-Actuator Cordset
Elco Automation

CO12.4-15/P Sensor-Actuator Cordset

Sensor-Actuator Cordset, Single-ended, M12 A-code 4-pin Straight Female, with PUR grey jacket 0.34mm² (22 AWG) 5 million bending cycles cable, 15 m

$44.00

LKHA-0808N-TA IO-Link Sensor Hub
Elco Automation

LKHA-0808N-TA IO-Link Sensor Hub

IO-Link Sensor Hub, V1.1.3, Class-A, IP20 module for DIN-Rail mounting, 8-pin digital input and 8-pin digital output interface, 8 DI, 8 DO, NPN, 4-pin terminal supply interface, With equipotential terminal, 24 V DC

$115.80

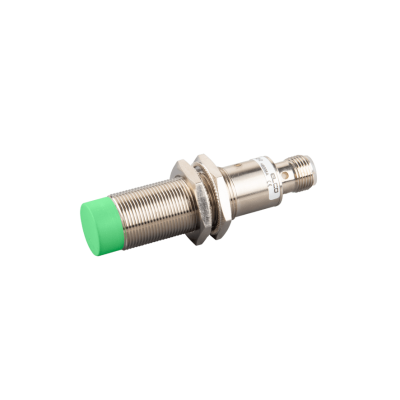

NC12-KM18-OP6L-Q12 Capacitive Sensor
