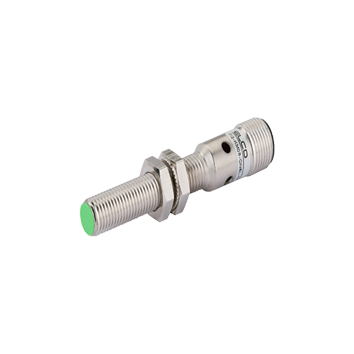

FI2-M08-CD6L-Q12/TB40 Inductive Sensor
Inductive Sensor, Threaded cylindrical housing M08, Low temperature series, Switching distance 2 mm, Flush, IP67, -40…70 °C, 2-wire DC, M12 connector
In Stock
$18.06
per unit
Applications: Sensors & I/O
Technical Data
| External dimensions | M8 x 1 |
| Sensing range | 2 mm |
| Output type | DC |
| Mounting | Flush |
| Product size | M8 x 65.4 mm |
| Output status | NC |
| IP rating | IP67 |
| Connection | M12, 4-pin |
| Sensing surface material | PBT |
| Housing material | Nickel-plated brass |
| Switching frequency | 1000 Hz |
| Supply voltage | 10 … 30 V DC |
| Ambient temperature | -40 … +70 ℃ |
| Load current | ≤ 100 mA |
