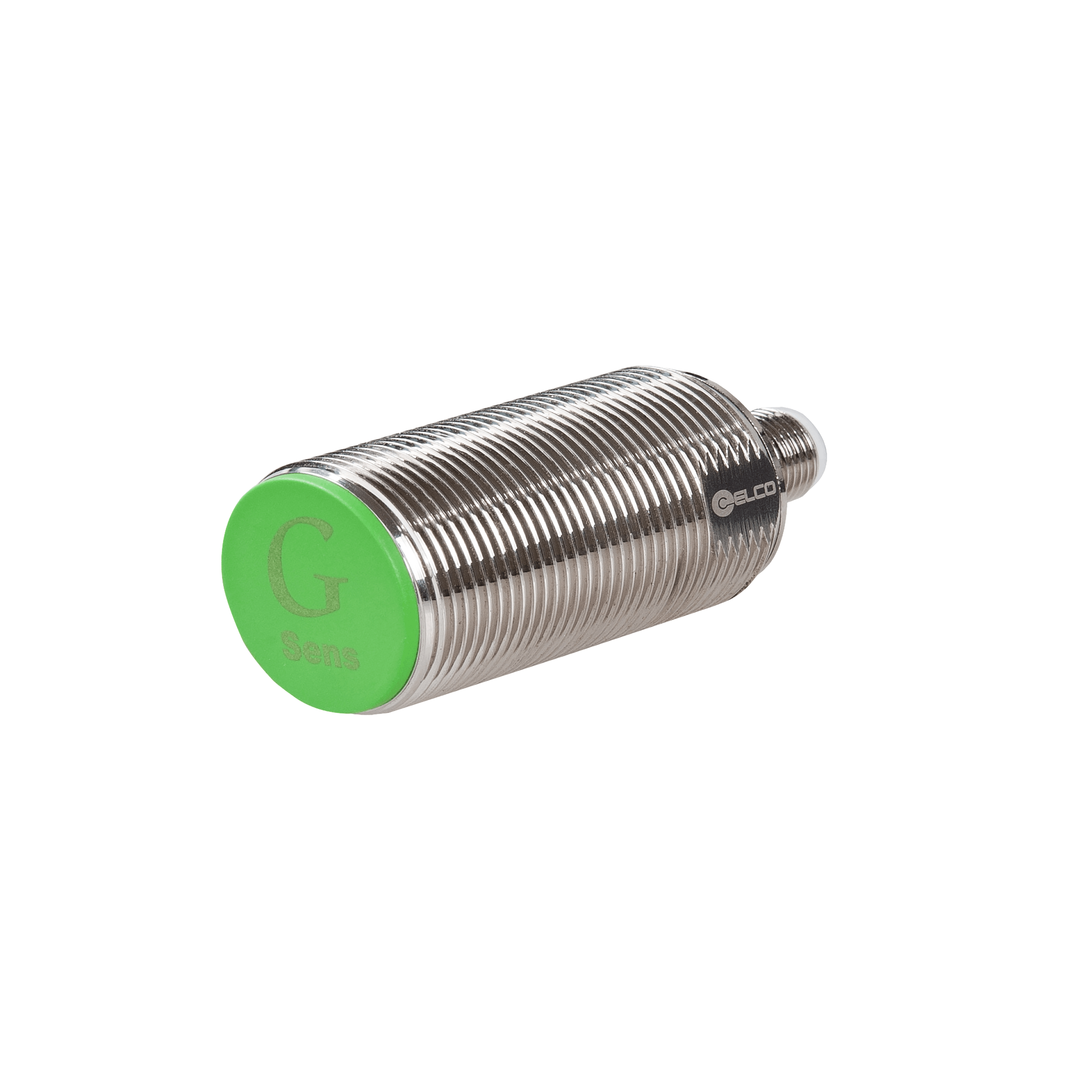

FI15-G30-ON6L-Q12 Inductive Sensor
Inductive Sensor, Threaded cylindrical housing M30, Switching distance 15 mm, Flush, IP68, -30…85 °C, NPN NO, M12 connector
In Stock
$35.20
per unit
Applications: Sensors & I/O
Technical Data
| Housing material | Stainless steel |
| Sensing surface material | PBT |
| Connection | M12, 4-pin |
| Sensing range | 15 mm |
| Switching frequency | 350 Hz |
| Supply voltage | 10 … 30 V DC |
| Ambient temperature | -30 … +85 ℃ |
| Load current | ≤ 200 mA |
| Output status | NO |
| Output type | NPN |
| External dimensions | M30 x 1.5 |
| Mounting | Flush |
| Product size | M30 x 65 mm |
| IP rating | IP68 |
