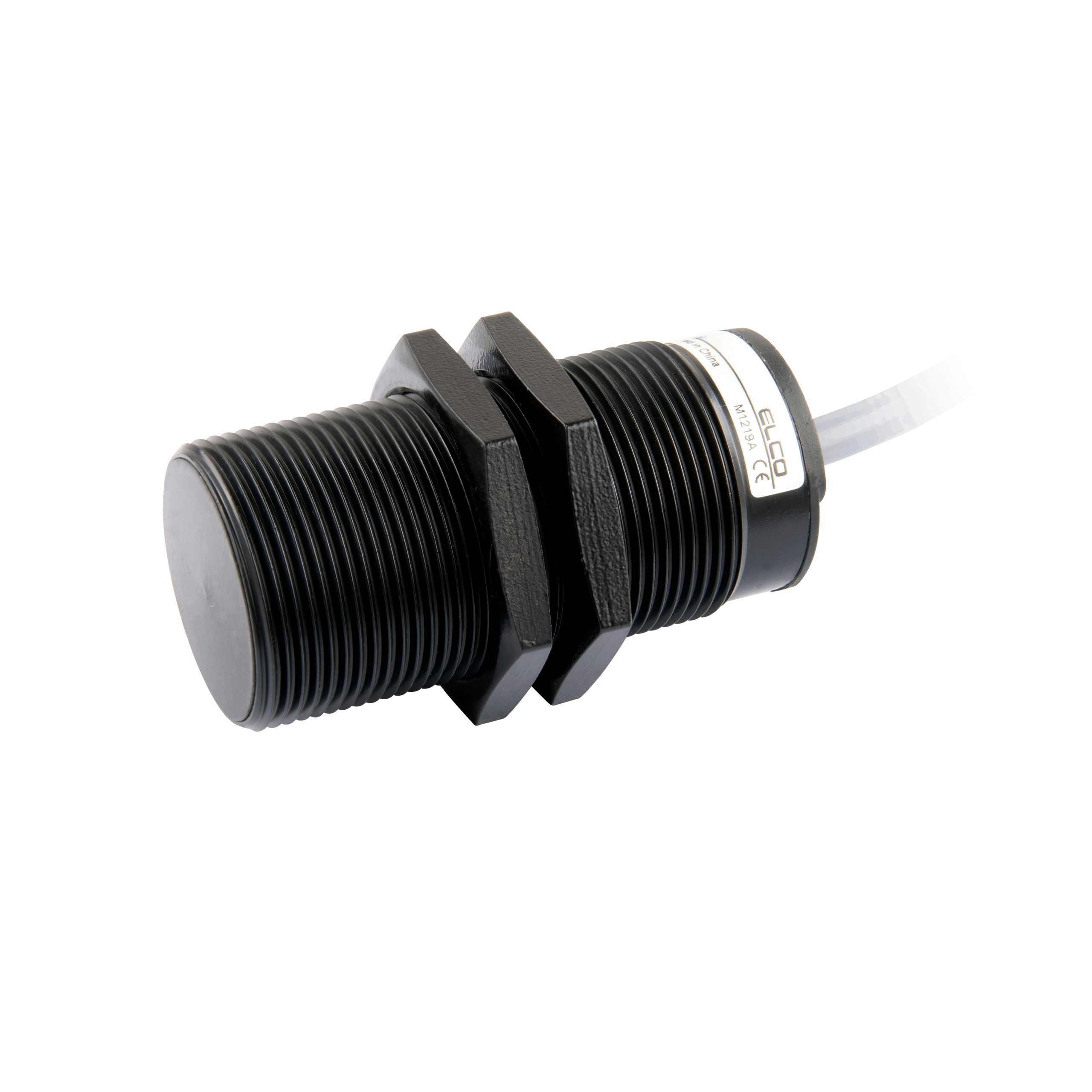

FI10A-TM30-CP6L Inductive Sensor
Inductive Sensor, Threaded cylindrical housing M30, PTFE-coated , Switching distance 10 mm, Flush, IP67, -25…70 °C, PNP NC, Cable 2 m
In Stock
$50.95
per unit
Applications: Sensors & I/O
Technical Data
| IP rating | IP67 |
| Output type | PNP |
| Supply voltage | 10 … 30 V DC |
| Cable type | PVC |
| Output status | NC |
| Housing coating | Teflon |
| Housing material | Nickel-plated brass |
| Sensing surface material | PBT |
| Connection | Cable |
| Switching frequency | 400 Hz |
| Sensing range | 10 mm |
| Ambient temperature | -25 … +70 ℃ |
| Load current | ≤ 200 mA |
| Product size | M30 x 63.5 mm |
| Inductive surface coating | Teflon |
| External dimensions | M30 x 1.5 |
| Mounting | Flush |
| Cable length | 2 m |
