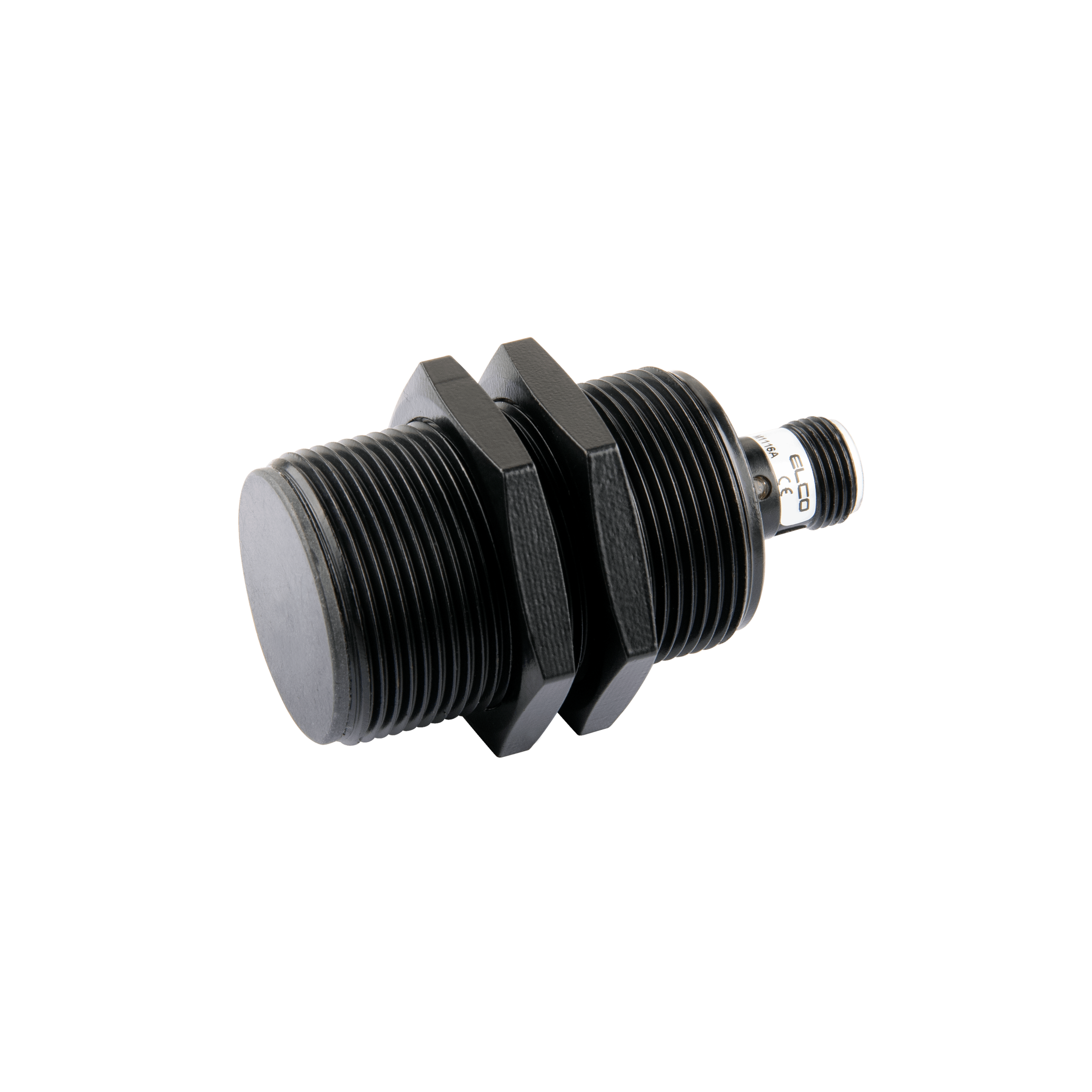

FI10A-TM30-CN6L-Q12 Inductive Sensor
Inductive Sensor, Threaded cylindrical housing M30, PTFE-coated , Switching distance 10 mm, Flush, IP67, -25…70 °C, NPN NC, M12 connector
In Stock
$50.95
per unit
Applications: Sensors & I/O
Technical Data
| Output status | NC |
| IP rating | IP67 |
| Connection | M12, 4-pin |
| Housing material | Nickel-plated brass |
| Sensing range | 10 mm |
| Inductive surface coating | Teflon |
| Output type | NPN |
| Housing coating | Teflon |
| Sensing surface material | PBT |
| Switching frequency | 400 Hz |
| Supply voltage | 10 … 30 V DC |
| Ambient temperature | -25 … +70 ℃ |
| Load current | ≤ 200 mA |
| Product size | M30 x 62 mm |
| External dimensions | M30 x 1.5 |
| Mounting | Flush |
