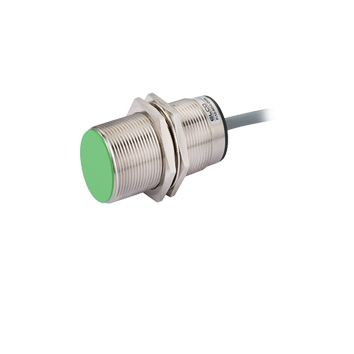

FI10-M30-OD6L/TB40 Inductive Sensor
Inductive Sensor, Threaded cylindrical housing M30, Switching distance 10 mm, Flush, IP67, -40…70 °C, 2-wire DC, Cable 2 m
In Stock
$37.05
per unit
Applications: Sensors & I/O
Technical Data
| Sensing range | 10 mm |
| Connection | Cable |
| Cable type | PUR |
| Housing material | Nickel-plated brass |
| Supply voltage | 10 … 30 V DC |
| Sensing surface material | PBT |
| Switching frequency | 400 Hz |
| Ambient temperature | -40 … +70 ℃ |
| Output status | NO |
| Load current | ≤ 100 mA |
| Output type | DC |
| External dimensions | M30 x 1.5 |
| Mounting | Flush |
| Product size | M30 x 60.5 mm |
| Cable length | 2 m |
| IP rating | IP67 |
