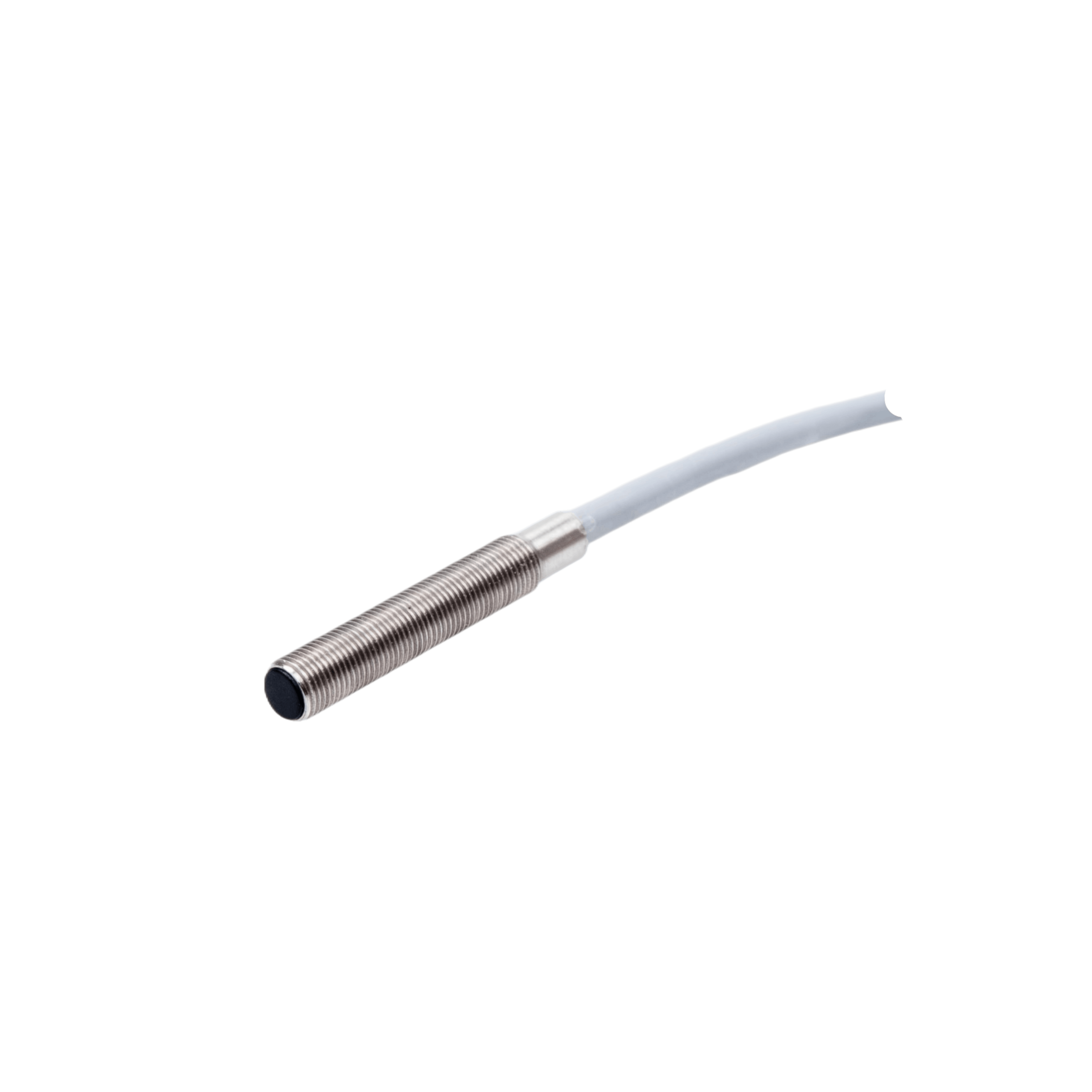

FI1-KM05-OP6L Inductive Sensor
Inductive Sensor, Threaded cylindrical housing M5, Switching distance 1 mm, Flush, IP67, -25…70 °C, PNP NO, Cable 2 m
In Stock
$32.42
per unit
Applications: Sensors & I/O
Technical Data
| Cable type | PUR |
| Connection | Cable |
| Ambient temperature | -25 … +70 ℃ |
| Sensing range | 1 mm |
| Output status | NO |
| Housing material | Stainless steel |
| Sensing surface material | PBT |
| Switching frequency | 1000 Hz |
| Load current | ≤ 100 mA |
| Supply voltage | 10 … 30 V DC |
| External dimensions | M5 x 1 |
| Output type | PNP |
| Mounting | Flush |
| Product size | M5 x 30.3 mm |
| Cable length | 2 m |
| IP rating | IP67 |
