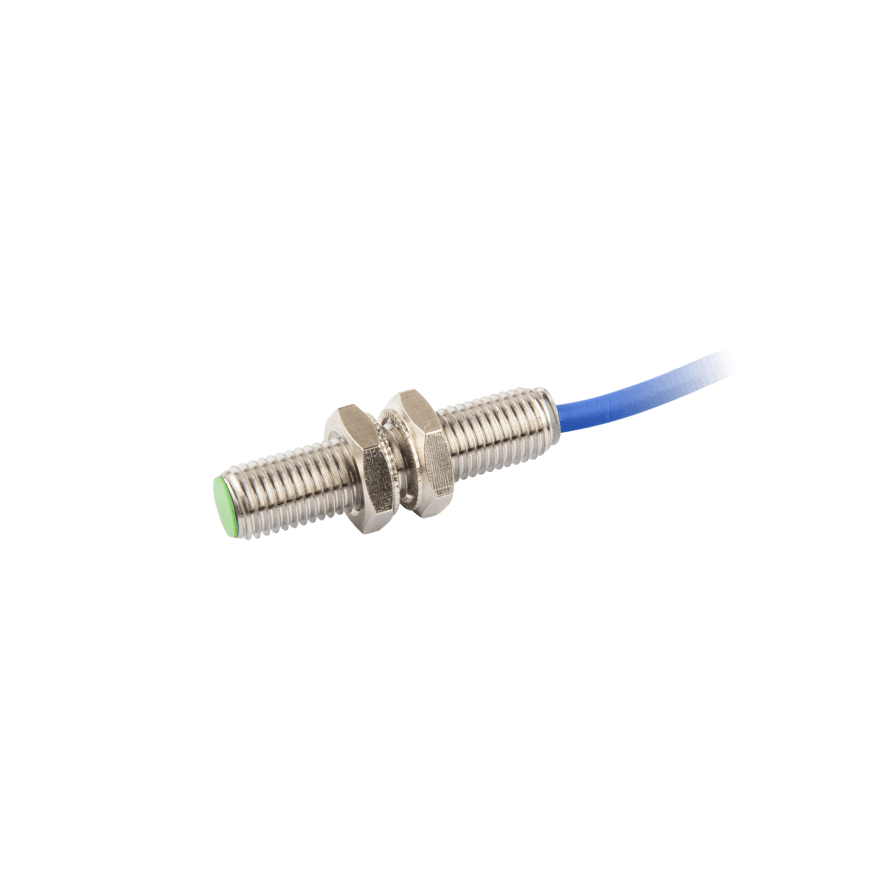

FI1.5-KM08S-NE Inductive Sensor
Inductive Sensor, Threaded cylindrical short housing M08, Switching distance 1.5m m, Flush, IP67, -25…70 °C, NAMUR NC, Cable 2 m
In Stock
$17.60
per unit
Applications: Sensors & I/O
Technical Data
| Sensing range | 1.5 mm |
| Cable type | PVC |
| Connection | Cable |
| Sensing surface material | PBT |
| Housing material | Stainless steel |
| Switching frequency | 1000 Hz |
| Supply voltage | 7.7 … 9 V DC |
| Ambient temperature | -25 … +70 ℃ |
| Output status | NC |
| External dimensions | M8 x 1 |
| Output type | NAMUR |
| Mounting | Flush |
| Product size | M8 x 35.2 mm |
| Cable length | 2 m |
| IP rating | IP67 |
