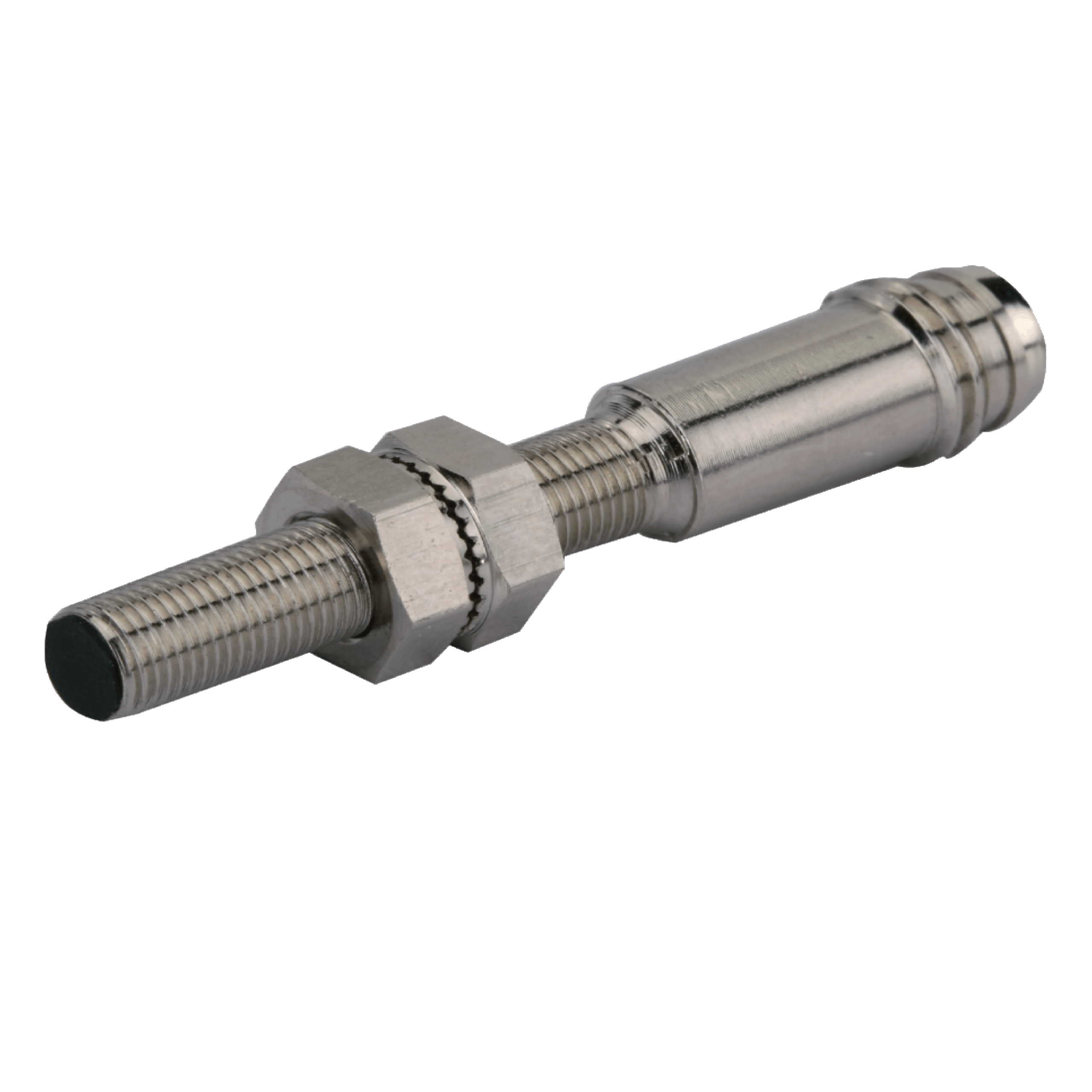

FI1.5-G05-CP6L-Q8 Inductive Sensor
Inductive Sensor, Threaded cylindrical housing M05, Switching distance 1.5 mm, Flush, IP68, -25…70 °C, PNP NC, M8 connector
In Stock
$31.50
per unit
Applications: Sensors & I/O
Technical Data
| Output type | PNP |
| Sensing range | 1.5 mm |
| External dimensions | M5 x 1 |
| Mounting | Flush |
| Product size | M5 x 40.3 mm |
| Output status | NC |
| Housing material | Stainless steel |
| Connection | M8, 3-pin |
| Sensing surface material | PBT |
| Switching frequency | 1000 Hz |
| Supply voltage | 10 … 30 V DC |
| Ambient temperature | -30 … +85 ℃ |
| Load current | ≤ 200 mA |
| IP rating | IP68 |
