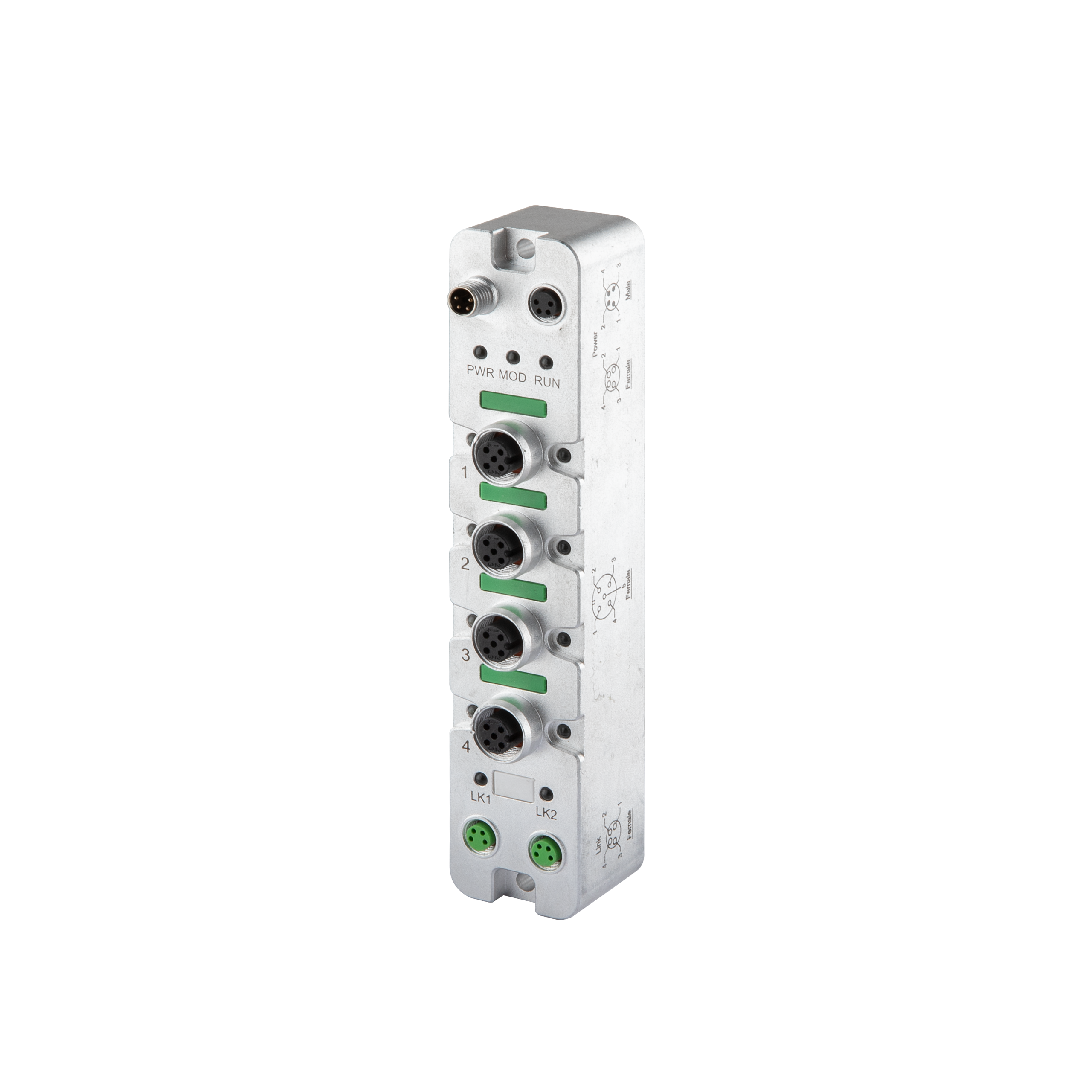

FEPN-04UA-M12-T Compact67 Slim
Compact67 Slim, PROFINET, Analog I/O, M8 4-pin Ethernet and Power supply, 4xM12 5-pin, 4 x AI/AO (current, voltage, thermocouple), 24 V DC, Metal housing, IP67
In Stock
$453.92
per unit
Applications: HMI & Controls, Sensors & I/O
Technical Data
| Communication protocol | PROFINET |
| IP rating | IP67 |
| Power connection | 2 x M8 4-pin |
| Fieldbus connection | 2 x M8 4-pin |
| Power supply | 18 … 30 V DC |
| Input type | Voltage, Current, TC, RTD |
| Dimensions | 32 x 155 x 34 mm |
| Ambient temperature | -25 … +70 °C |
| Storage temperature | -40 … +85 °C |
| Certificate | CE |
| Signal type | Analog I/O |
| Signal connection | 4 x M12 A-Code |
| Number of channels | 4 AI/AO |
| Housing material | AL6061 |
| Output type | Voltage, Current |
