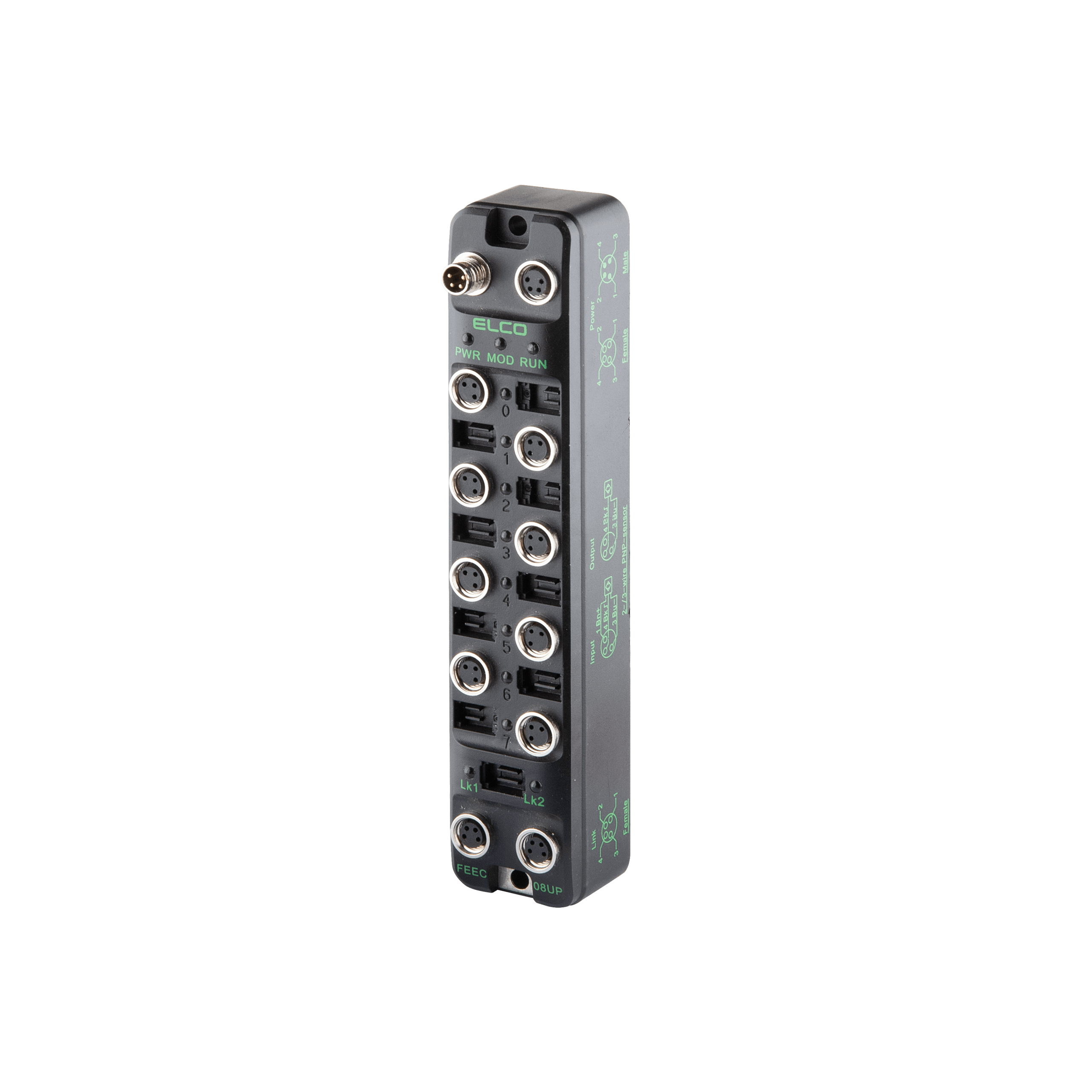

FEEC-08UP-M8 Compact67 Slim
Compact67 Slim, EtherCAT, M8 4-pin Ethernet and Power supply, 8 x M8 3-pin, 8DI/DO, PNP, 24 V DC, Plastic housing, IP67
In Stock
$220.89
per unit
Applications: HMI & Controls, Sensors & I/O
Technical Data
| Power connection | 2 x M8 4-pin |
| Fieldbus connection | 2 x M8 4-pin |
| Number of channels | 8 DI/DO |
| Input type | PNP |
| Dimensions | 32 x 155 x 32 mm |
| Ambient temperature | -25 … +70 °C |
| Storage temperature | -40 … +85 °C |
| Certificate | CE |
| Signal type | Digital I/O |
| Power supply | 18 … 30 V DC |
| Communication protocol | EtherCAT |
| Signal connection | 8 x M8 3-pin |
| Housing material | PA66 + GF |
| IP rating | IP67 |
| Output type | PNP |
