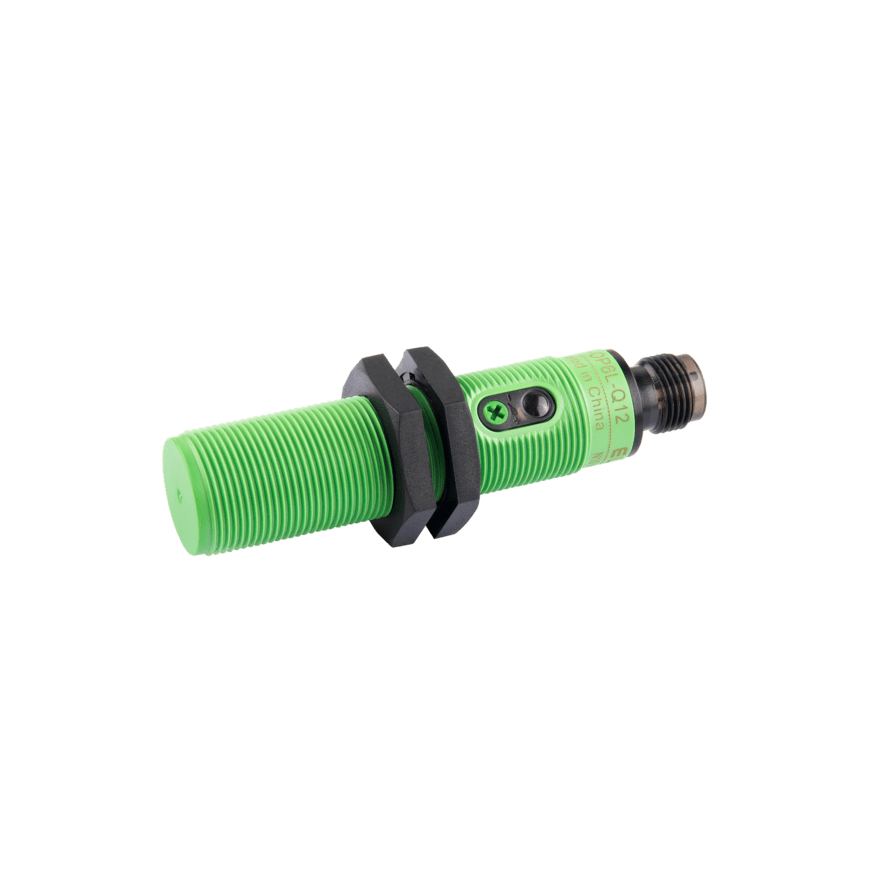

FC8-P18-BN6L-Q12 Capacitive Sensor
Capacitive Sensor, Plastic threaded cylindrical housing P18, Switching distance 8 mm, Flush, IP67, -25…70 °C, NPN NO+NC, M12 4-pole
In Stock
$32.42
per unit
Applications: Sensors & I/O
Technical Data
| Ambient temperature | -25 … +70 ℃ |
| Product size | M18 x 79.5 mm |
| Load current | ≤ 200 mA |
| Housing material | PBT |
| Sensing range | 8 mm |
| Mounting | Flush |
| External dimensions | M18 x 1 |
| Output type | NPN |
| Switching frequency | 15 Hz |
| Sensing surface material | PBT |
| Connection | M12, 4-pin |
| Output status | NO + NC |
| Supply voltage | 10 … 30 V DC |
| IP rating | IP67 |
