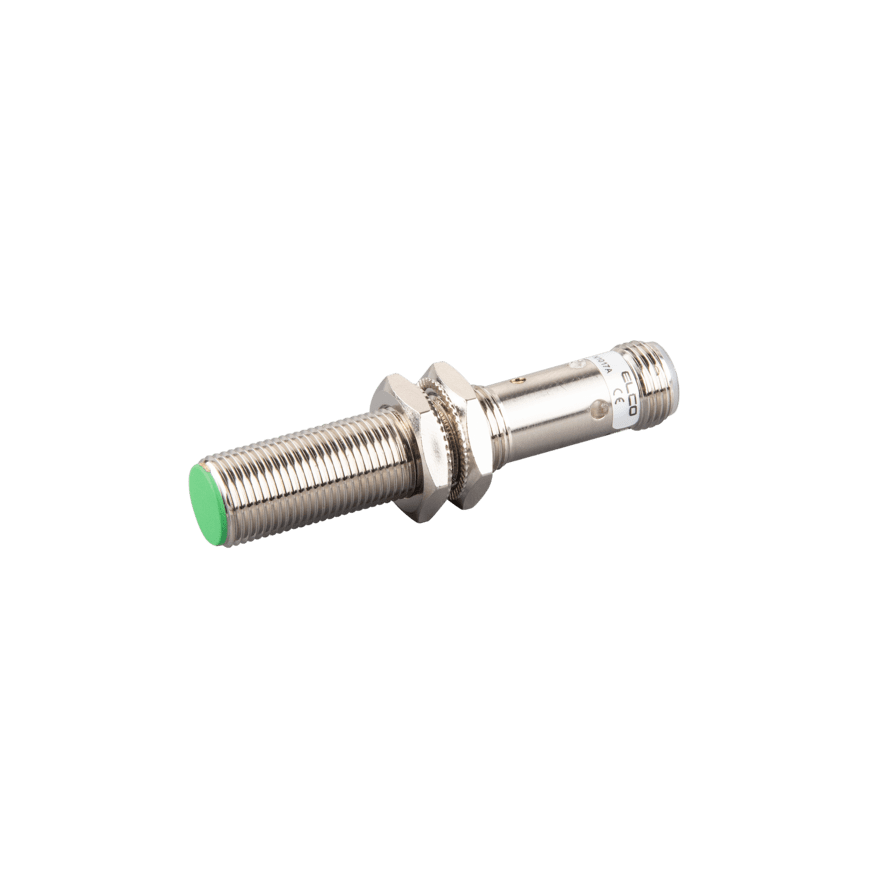

FC2-M12-CP6L-Q12 Capacitive Sensor
Capacitive Sensor, Metal threaded cylindrical housing M12, Switching distance 2 mm, Flush, IP67, -25…70 °C, PNP NC, M12 3-pole
In Stock
$23.16
per unit
Applications: Sensors & I/O
Technical Data
| Supply voltage | 10 … 30 V DC |
| Switching frequency | 50 Hz |
| Product size | M12 x 65.7 mm |
| Ambient temperature | -25 … +70 ℃ |
| Sensing range | 2 mm |
| External dimensions | M12 x 1 |
| Load current | ≤ 200 mA |
| Output type | PNP |
| Mounting | Flush |
| Output status | NC |
| Connection | M12, 4-pin |
| Sensing surface material | PBT |
| IP rating | IP67 |
| Housing material | Nickel-plated brass |
