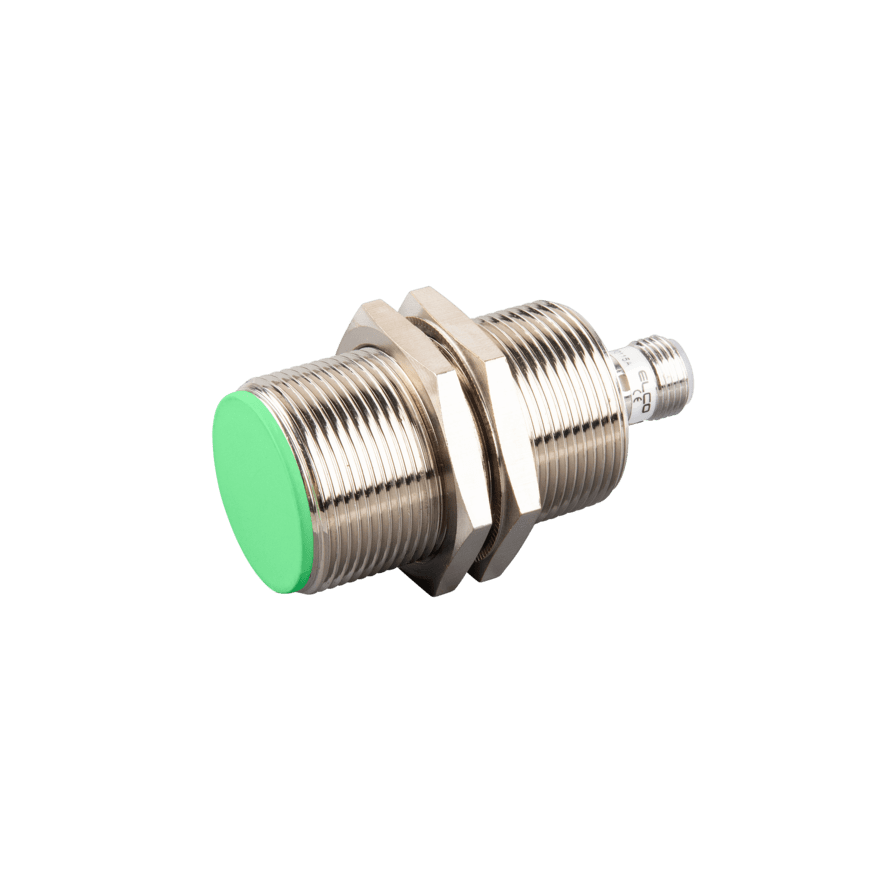

FC10-M30-OP6L-Q12 Capacitive Sensor
Capacitive Sensor, Metal threaded cylindrical housing M30, Switching distance 10 mm, Flush, IP67, -25…70 °C, PNP NO, M12 3-pole
In Stock
$34.28
per unit
Applications: Sensors & I/O
Technical Data
| Sensing range | 10 mm |
| Load current | ≤ 200 mA |
| Supply voltage | 10 … 30 V DC |
| Mounting | Flush |
| Output type | PNP |
| Product size | M30 x 66.5 mm |
| Output status | NO |
| External dimensions | M30 x 1.5 |
| IP rating | IP67 |
| Ambient temperature | -25 … +70 ℃ |
| Housing material | Nickel-plated brass |
| Connection | M12, 4-pin |
| Sensing surface material | PBT |
| Switching frequency | 50 Hz |
