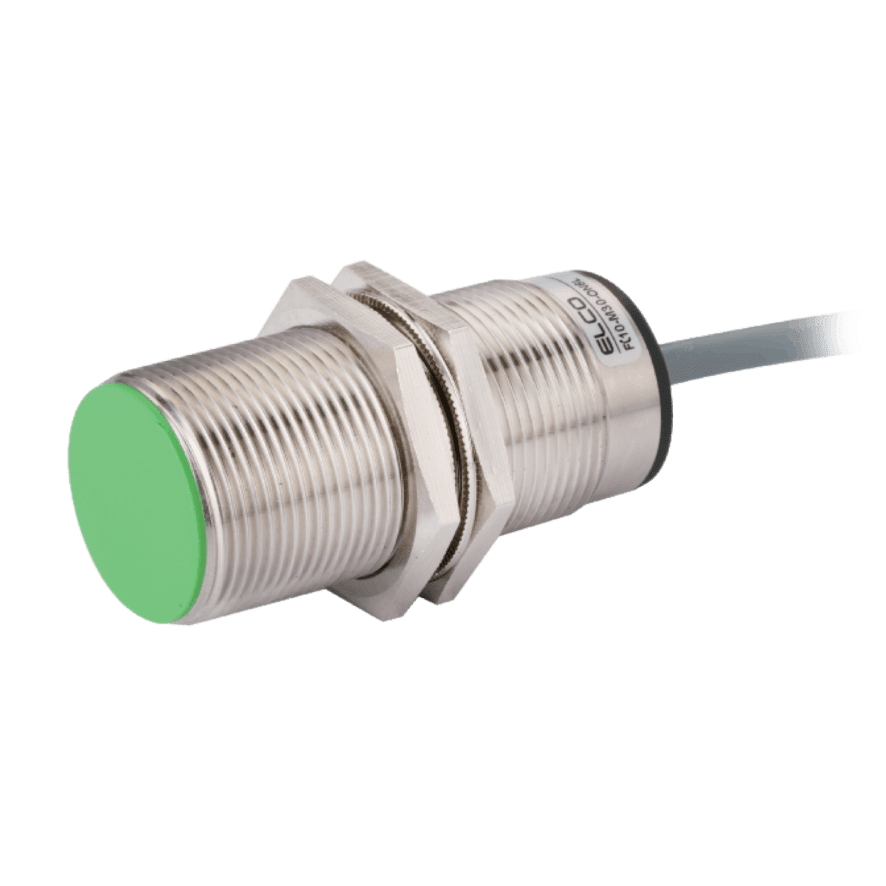

FC10-M30-CSA3L Capacitive Sensor
Capacitive Sensor, Metal threaded cylindrical housing M30, Switching distance 10 mm, Flush, IP67, -25…70 °C, AC NC, Cable 2 m
In Stock
$38.44
per unit
Applications: Sensors & I/O
Technical Data
| Load current | ≤ 200 mA |
| Mounting | Flush |
| Output status | NC |
| Connection | Cable |
| Output type | AC |
| Sensing range | 10 mm |
| Supply voltage | 20 … 250 V AC |
| Cable type | PVC |
| Ambient temperature | -25 … +70 ℃ |
| Product size | M30 x 72.3 mm |
| Switching frequency | 15 Hz |
| External dimensions | M30 x 1.5 |
| Cable length | 2 m |
| Housing material | Nickel-plated brass |
| IP rating | IP67 |
| Sensing surface material | PBT |
