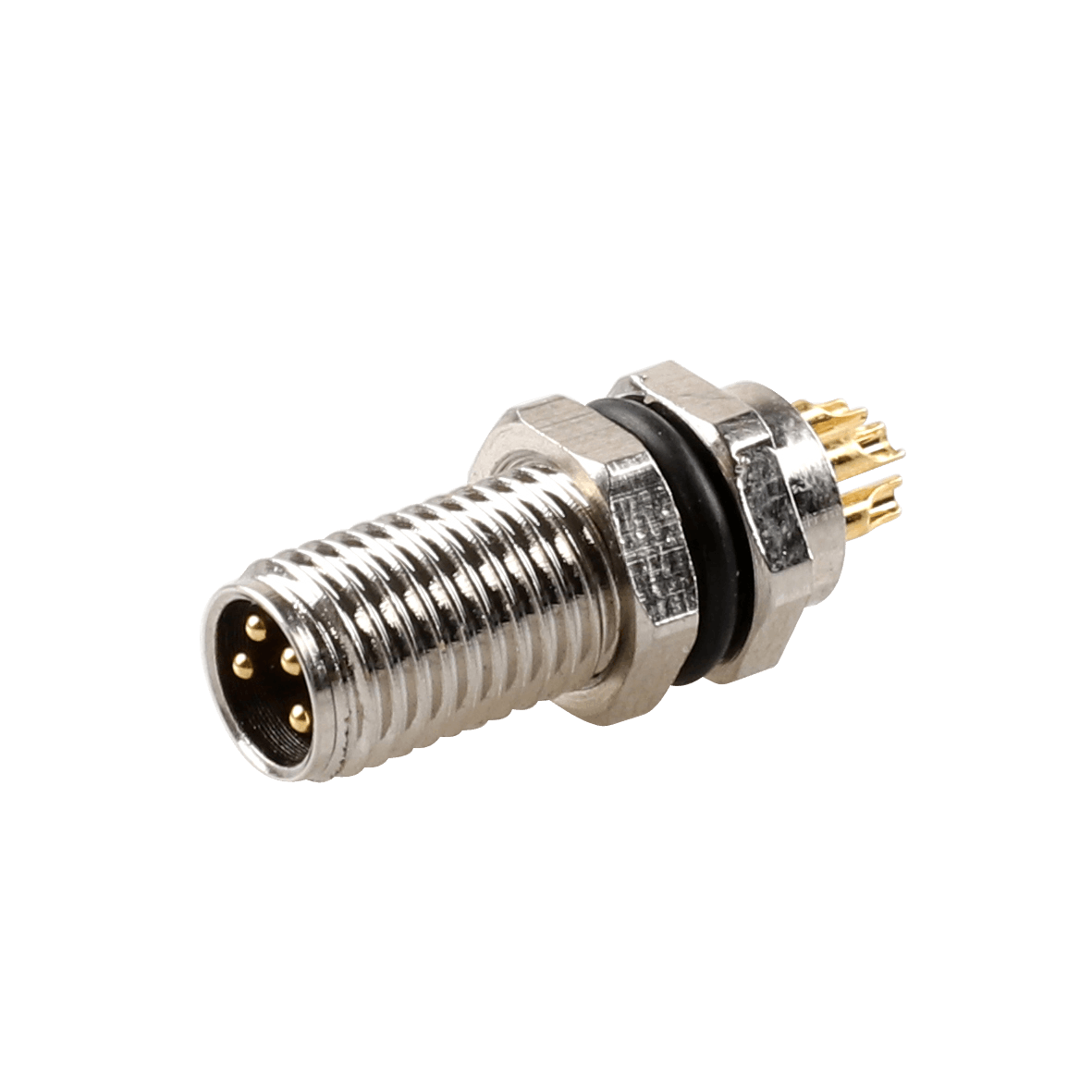

F8.4-0/M8 Flange-Mount Bulkhead Connector
Flange-Mount Bulkhead Connector, without cable, M8 A-code 4-pin Straight Male, M8 Hole dimension, Rear mount
In Stock
$8.11
per unit
Applications: Sensors & I/O
Technical Data
| Installation methods | Rear mount |
| Rated current | 4 A |
| Cable jacket color | Without Cable |
| Cable jacket material | Without Cable |
| Rated voltage | 60 V AC/DC |
| Coating contact material | Gold-plated copper |
| Wire insulation material | Without Cable |
| Wire insulation color | Without Cable |
| Shielded/Unshielded | NO |
| Drag chain | Without Cable |
| Cable length | 0 m |
| IP rating | IP67 |
| Nut/bolt material | Nickel plated brass |
| Material contact | TPU |
| Hole dimensions | M8 |
| Wire cross-section | Max. 0.34 mm² |
| Product type | Flange-Mount Bulkhead Connector |
| Termination Type | Without cable |
| Head 1 Type | M8 |
| Head 1 Number of contacts | 3 |
| Head 1 Coding | A-code |
