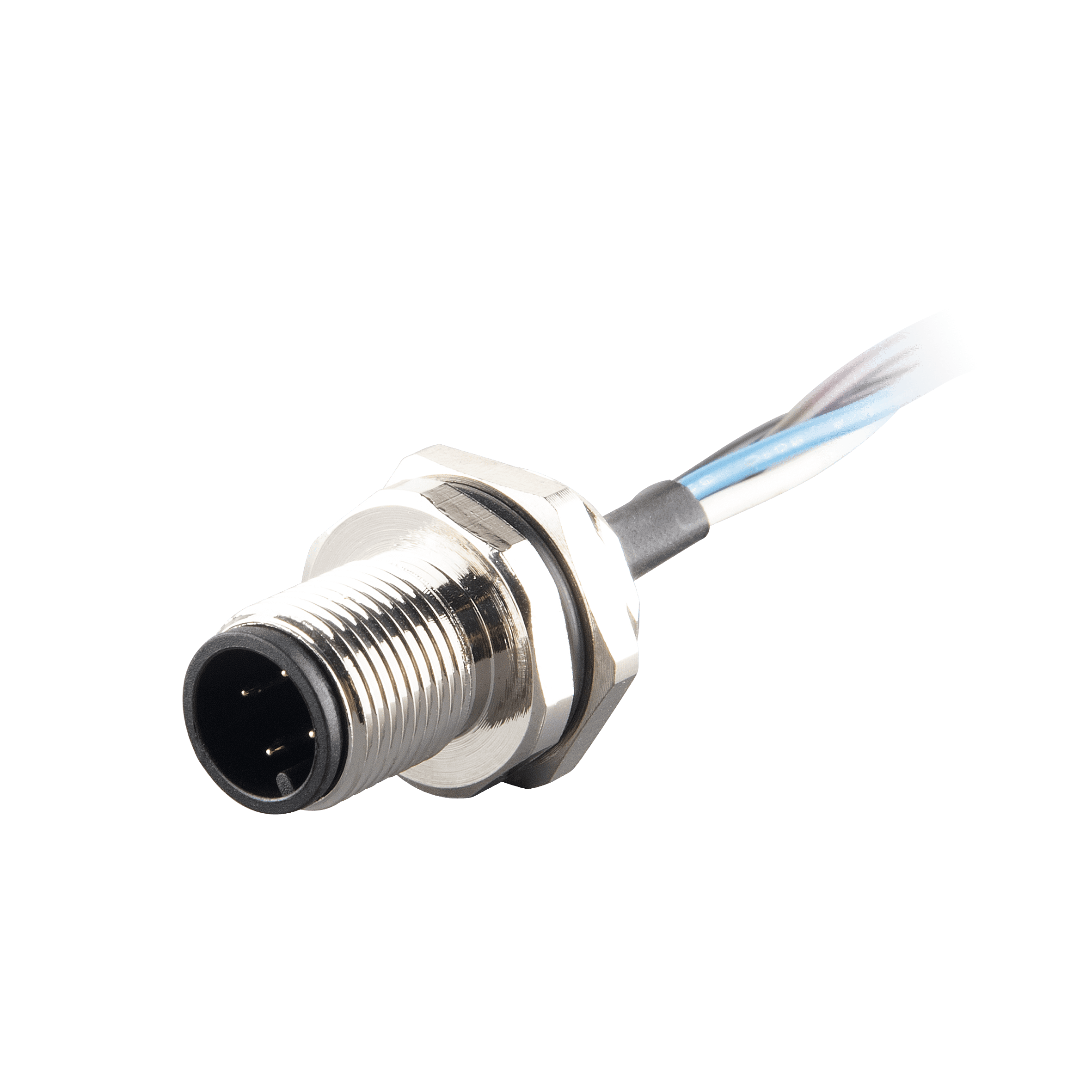

F12.4-0.5/M16/F Flange-Mount Bulkhead Connector
Flange-Mount Bulkhead Connector, with cable, M12 A-code 4-pin Straight Male, M16 Hole dimension, Front mount, with PVC Cable, 0.5 m
In Stock
$9.54
per unit
Applications: Sensors & I/O
Technical Data
| Nut/bolt material | Nickel plated brass |
| Hole dimensions | M16 |
| Coating contact material | Gold-plated copper |
| Cable jacket color | Without Cable jacket |
| Wire insulation color | BN,BU,BK |
| Drag chain | Fixed installation |
| Rated voltage | 250 V AC/DC |
| Rated current | 4 A |
| Material contact | TPU |
| Cable jacket material | Without Cable jacket |
| Wire insulation material | PVC |
| IP rating | IP67 |
| Shielded/Unshielded | NO |
| Cable length | 0.5 m |
| Installation methods | Front mount |
| Wire cross-section | Max. 1.0 mm² |
| Product type | Flange-Mount Bulkhead Connector |
| Termination Type | With cable |
| Head 1 Type | M8 |
| Head 1 Number of contacts | 3 |
| Head 1 Coding | A-code |
