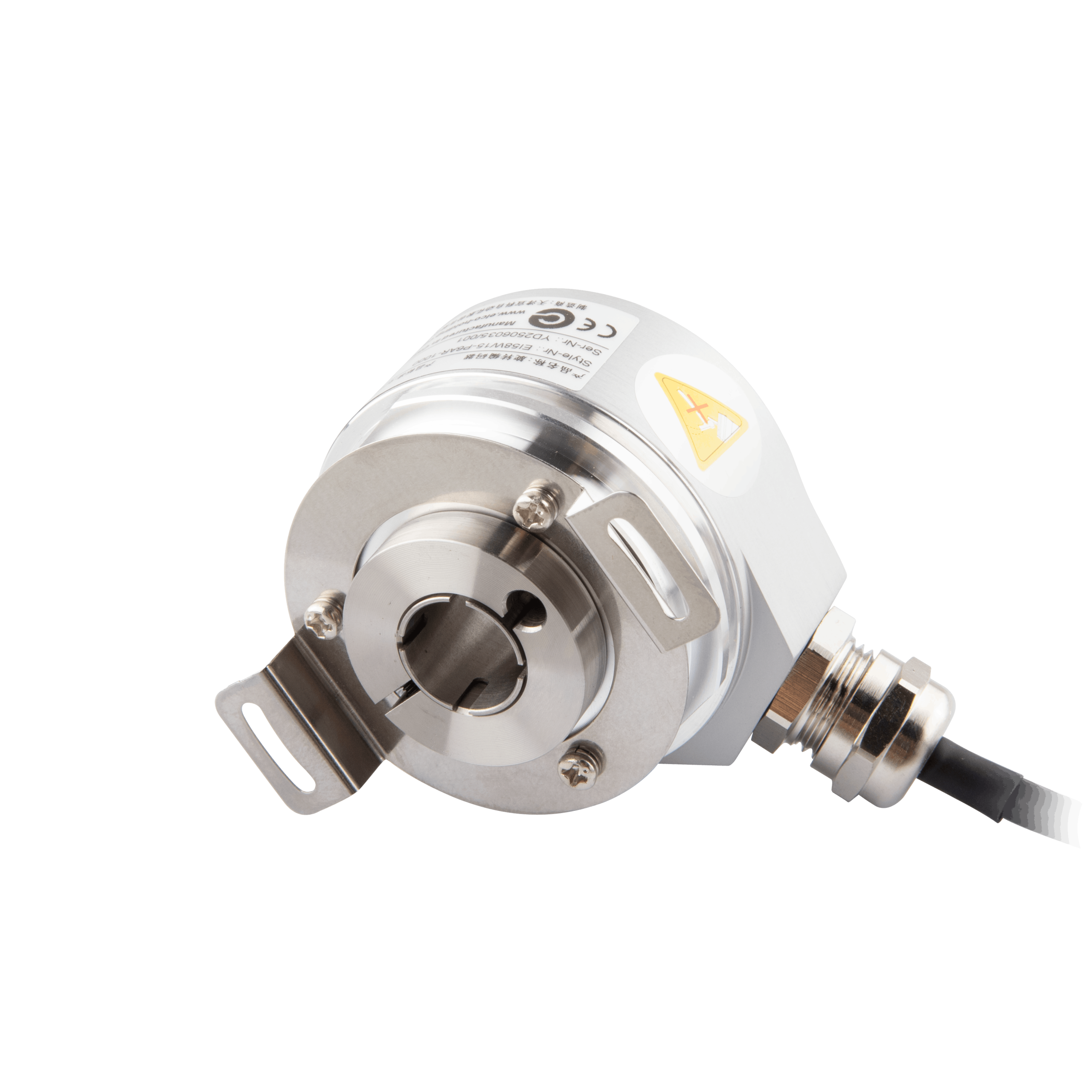

EV58W15-P6PR-1200 Hollow Shaft incremental encoder
Hollow Shaft incremental encoder, EV58 Series, Double-winged spring installation, Hollow Shaft Diameter 15H7 mm, Supply Voltage 10…30 VDC, Output Push-pull(without inverted signal), Radial, Cable 1.5 m, Resoluteion 1200
In Stock
$266.93
per unit
Applications: Motion Control
Technical Data
| Weight | 400 g |
| Permissible load(channel) | ±30 mA |
| Model | Incremental encoder |
| Housing material | Al-alloy |
| Housing diameter | 58 mm |
| IP rating | IP65 |
| Flange type | Fixing plate |
| Shaft type | Through hollow shaft |
| Shaft diameter | 15 mm |
| Max load capacity of the shaft | 60 N Axial120 N Radial |
| Max Speed(rpm) | 6000 rpm |
| Moment of inertia | 6 x 10-6 kgm2 |
| Starting torque | ＜ 0.03 N·m |
| Shock resistance | 50 g, 11 ms |
| Vibration resistance | 10 g, 10 … 2000 Hz |
| Relative humidity/condensation | 90 % Condensation not permitted |
| Ambient temperature | -20 … +80 °C |
| Resolution | 1200 ppr |
| Supply voltage | 10 … 30 V DC |
| Output logic | Push-pull HTL without inverted signal |
| Pulse frequency | 300 kHz |
| Connection type | Cable outlet |
| Cable length | 1.5 m |
