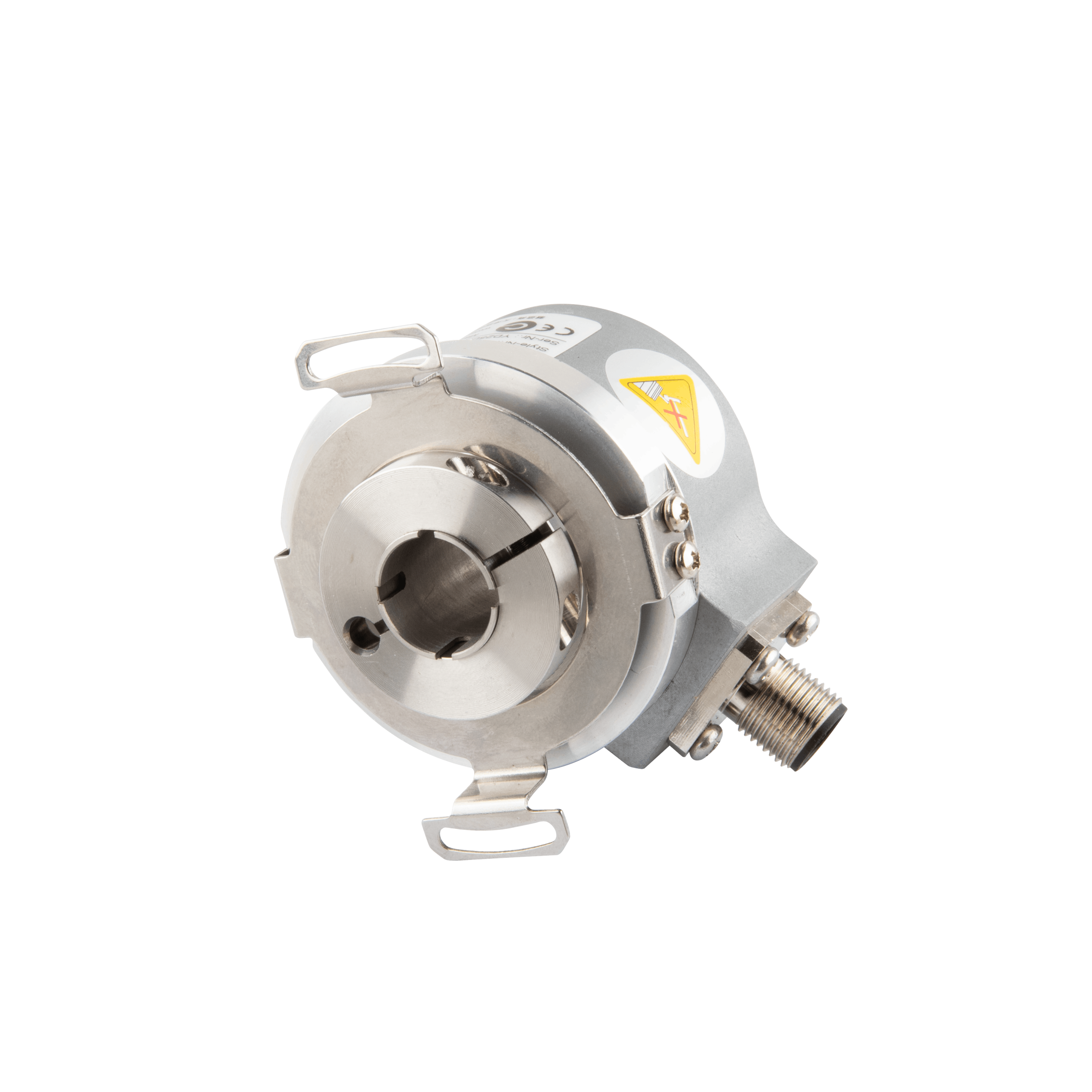

EV50W10-H6PR-1024M8 Hollow Shaft incremental encoder
Hollow Shaft incremental encoder, EV50 Series, Double-winged spring installation, Hollow Shaft Diameter 10H7 mm, Supply Voltage 10…30 VDC, Output Push-pull(with inverted signal), Radial, M12 8Pin, Resoluteion 1024
In Stock
$186.25
per unit
Applications: Motion Control
Technical Data
| Shaft type | Through hollow shaft |
| IP rating | IP65 |
| Model | Incremental encoder |
| Shaft diameter | 10 mm |
| Relative humidity/condensation | 90 % Condensation not permitted |
| Max load capacity of the shaft | 40 N Axial80 N Radial |
| Max Speed(rpm) | 6000 rpm |
| Ambient temperature | -40 … +85 °C |
| Moment of inertia | 6 x 10-6 kgm2 |
| Shock resistance | 50 g, 11 ms |
| Vibration resistance | 10 g, 10 … 2000 Hz |
| Supply voltage | 10 … 30 V DC |
| Connection type | M12 8-pin Male |
| Pulse frequency | 300 kHz |
| Housing material | Al-alloy |
| Permissible load(channel) | ±30 mA |
| Housing diameter | 50 mm |
| Output logic | Push-pull HTL with inverted signal |
| Resolution | 1024 ppr |
| Starting torque | ＜ 0.03 Nm |
| Weight | 400 g |
| Flange type | Fixing plate |
