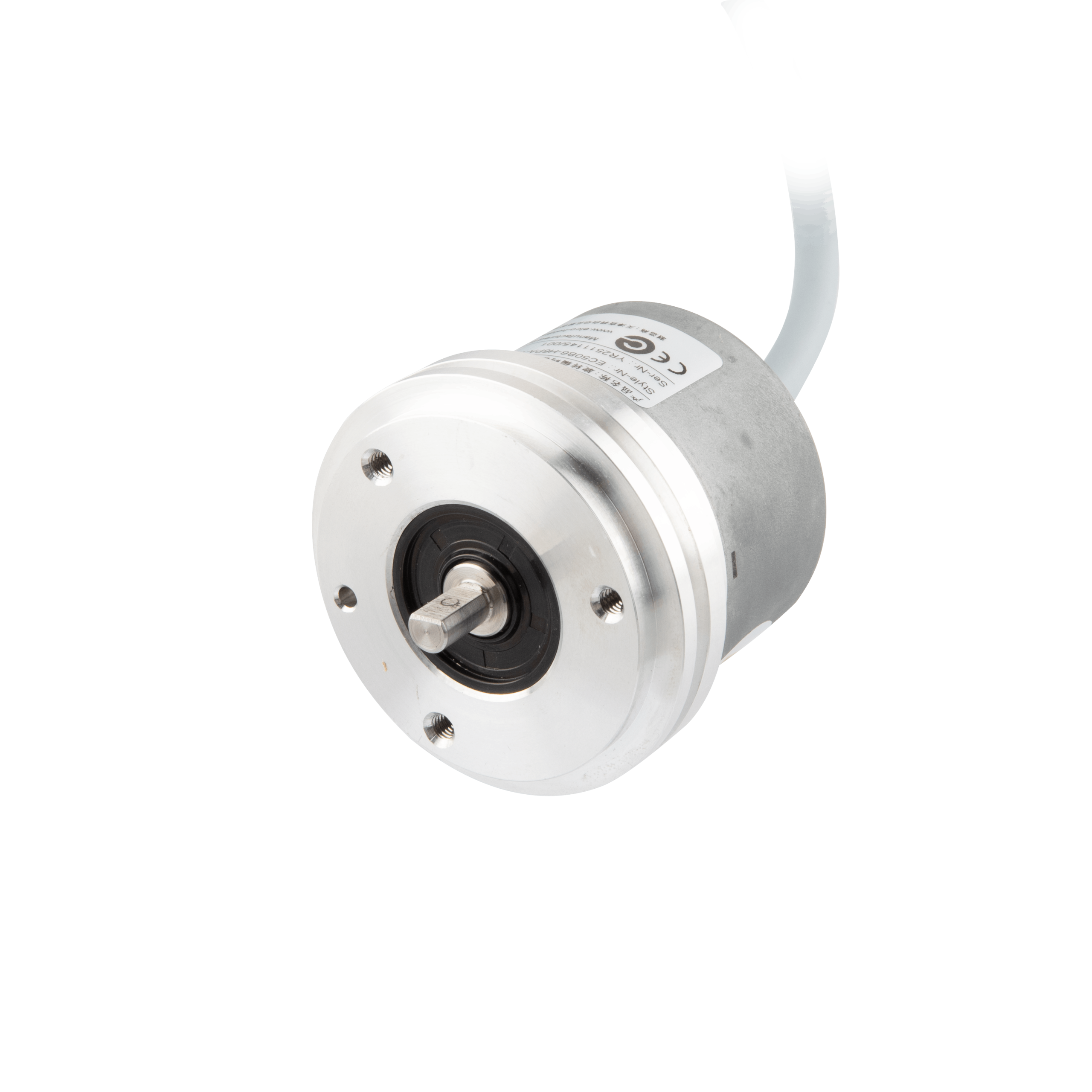

EV50B10-L6PA-1024 Shaft incremental encoder
Shaft incremental encoder, EV50 Series, Synchro flange, Shaft Diameter 10g6 mm, Supply Voltage 10…30 VDC, Output TTL(with inverted signal), Axial, Cable 1.5 m, Resoluteion 1024
In Stock
$160.03
per unit
Applications: Motion Control
Technical Data
| Model | Incremental encoder |
| Housing material | Al-alloy |
| Housing diameter | 50 mm |
| IP rating | IP65 |
| Flange type | Synchro flange |
| Shaft type | Solid shaft |
| Shaft diameter | 10 mm |
| Max load capacity of the shaft | 40 N Axial80 N Radial |
| Max Speed(rpm) | 6000 rpm |
| Connection type | Cable outlet |
| Moment of inertia | 1.9 x 10-6 kgm2 |
| Starting torque | ＜ 0.01 N·m |
| Shock resistance | 50 g, 11 ms |
| Vibration resistance | 10 g, 10 … 2000 Hz |
| Relative humidity/condensation | 90 % Condensation not permitted |
| Ambient temperature | -40 … +85 °C |
| Weight | 400 g |
| Resolution | 1024 ppr |
| Supply voltage | 10 … 30 V DC |
| Output logic | TTL |
| Permissible load(channel) | ±20 mA |
| Pulse frequency | 300 kHz |
| Cable length | 1.5 m |
