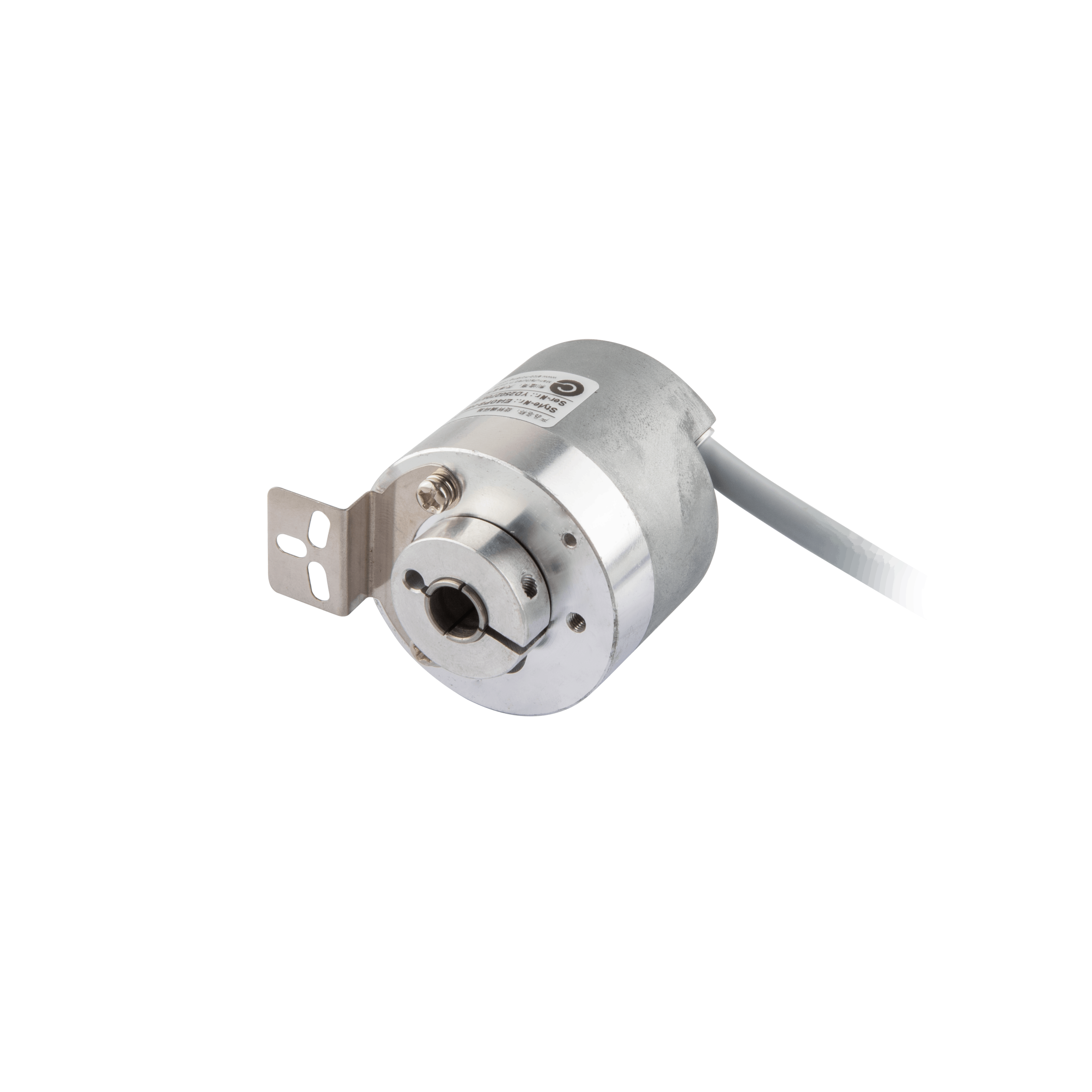

EV40P6-P6PR-1024TP.CN0050 Hollow shaft incremental encoder
Hollow shaft incremental encoder, Topydic Series EV40, Single wing fixing flange, Shaft 6H7 mm, 10…30 VDC, Output Push-pull(without inverted signal), Side prewired cable 5 m, Resoluteion 1024
In Stock
$142.89
per unit
Applications: Motion Control
Technical Data
| Model | Incremental encoder |
| IP rating | IP66 |
| Pulse frequency | 800 kHz |
| Housing material | Al-alloy |
| Housing diameter | 40 mm |
| Flange type | Fixing plate |
| Shaft type | Blind hollow shaft |
| Shaft diameter | 6 mm |
| Max load capacity of the shaft | 60 N Axial100 N Radial |
| Max Speed(rpm) | 6000 rpm |
| Moment of inertia | 1.9 x 10-6 kgm2 |
| Starting torque | ＜ 0.08 N·m |
| Shock resistance | 50 g, 11 ms |
| Vibration resistance | 10 g, 10 … 2000 Hz |
| Relative humidity/condensation | 90 % Condensation not permitted |
| Ambient temperature | -20 … +85 °C |
| Weight | 110 g |
| Resolution | 1024 ppr |
| Supply voltage | 10 … 30 V DC |
| Output logic | Push-pull HTL without inverted signal |
| Permissible load(channel) | ±30 mA |
| Connection type | Cable outlet |
| Cable length | 5 m |
