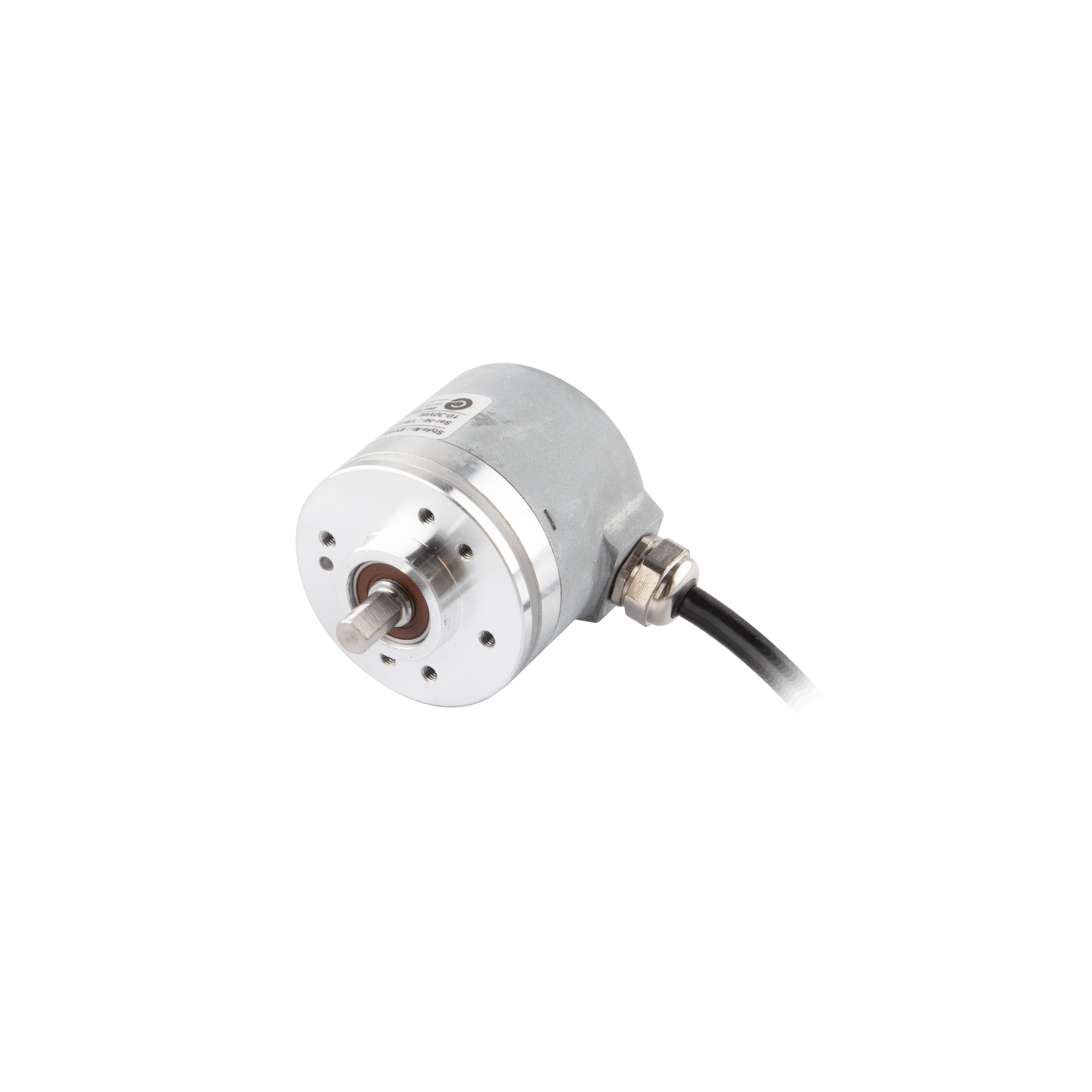

EV40C6-L6PR-1000.CN0030 Shaft incremental encoder
Shaft incremental encoder, Topydic Series EV40, 20 mm clamping flange, Shaft 6g6 mm, 10…30 VDC, Output TTL (with inverted signal), Cable 3 m, Resoluteion 1000
In Stock
$123.21
per unit
Applications: Motion Control
Technical Data
| Model | Incremental encoder |
| Housing material | Al-alloy |
| Housing diameter | 40 mm |
| IP rating | IP66 |
| Flange type | Clamping flange |
| Shaft type | Solid shaft |
| Shaft diameter | 6 mm |
| Max load capacity of the shaft | 60 N Axial100 N Radial |
| Max Speed(rpm) | 6000 rpm |
| Moment of inertia | 1.9 x 10-6 kgm2 |
| Starting torque | ＜ 0.08 N·m |
| Shock resistance | 50 g, 11 ms |
| Vibration resistance | 10 g, 10 … 2000 Hz |
| Relative humidity/condensation | 90 % Condensation not permitted |
| Ambient temperature | -20 … +85 °C |
| Weight | 110 g |
| Resolution | 1000 ppr |
| Supply voltage | 10 … 30 V DC |
| Output logic | TTL |
| Permissible load(channel) | ±50 mA |
| Pulse frequency | 800 kHz |
| Connection type | Cable outlet |
| Cable length | 3 m |
