Description

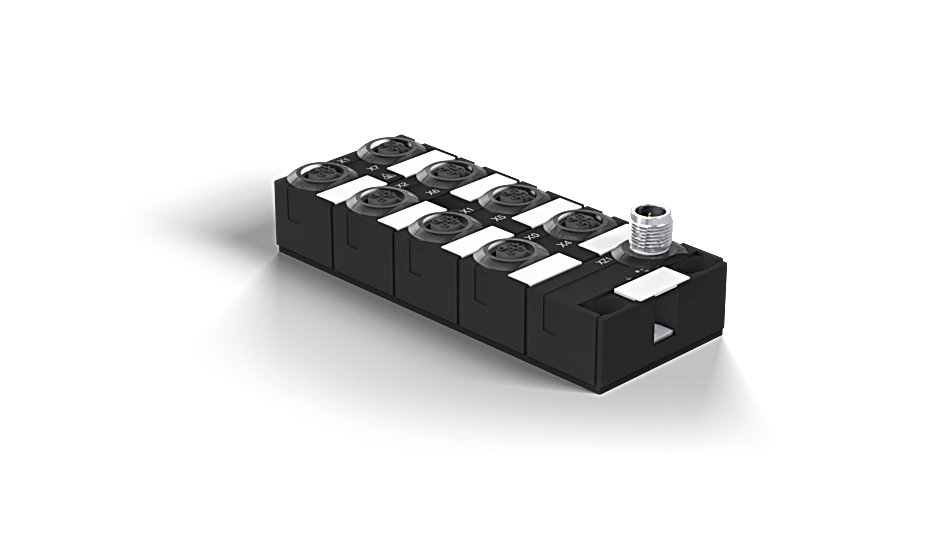

This IO-Link hub enables simple expansion with 16 digital inputs or outputs via a single IO-Link master port. Each port can be automatically identified as an input or output and has status LEDs.
Features at a Glance
- 16 freely selectable input and output pins
- 8 digital I/O ports
- IP67 degree of protection for harsh industrial environments
Technical Data
Electrical Data
| Supply Voltage | 18 … 30 V DC |
| Max. Current Consumption | 4 A |
| Max. current consumption per port | 0.5 A |
| max. total current of the digital I/O ports | 4 A |
| Sensor Supply Voltage (Pin 1) | 2 A |
| Temperature Range | -25 … 70 °C |
| Digital I/O ports short circuit protected | yes |
| Digital I/O ports overload protected | yes |
| Digital I/O ports reverse polarity protected | yes |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Communication Mode IO-Link | COM3 |
| Interface | IO-Link V1.1 |
| Protection Class | III |
| Shock resistance per DIN IEC 68-2-27 | 50 g / 11 ms |
| Vibration resistance per DIN IEC 60068-2-6 | 15 g (5…500 Hz) |
Mechanical Data
| Housing Material | Plastic, PBT/PC |
| Degree of Protection | IP68 |
| Type of connection digital I/O ports | 8 × M12 × 1; 5-pin, A-coded |
| IO-Link port connection type | M12 × 1, 5-pin, A-coded |
| Weight | 200 g |
General Data
| Scope of delivery | 1 × IO-Link hub |
| Packaging unit | 1 Piece |
Industrial Communication
| Interface | IO-Link |
| Number of I/Os | 16 × switchable |
| Inputs according to DIN EN 61131-2:2003 | Type 1 Type 3 |
