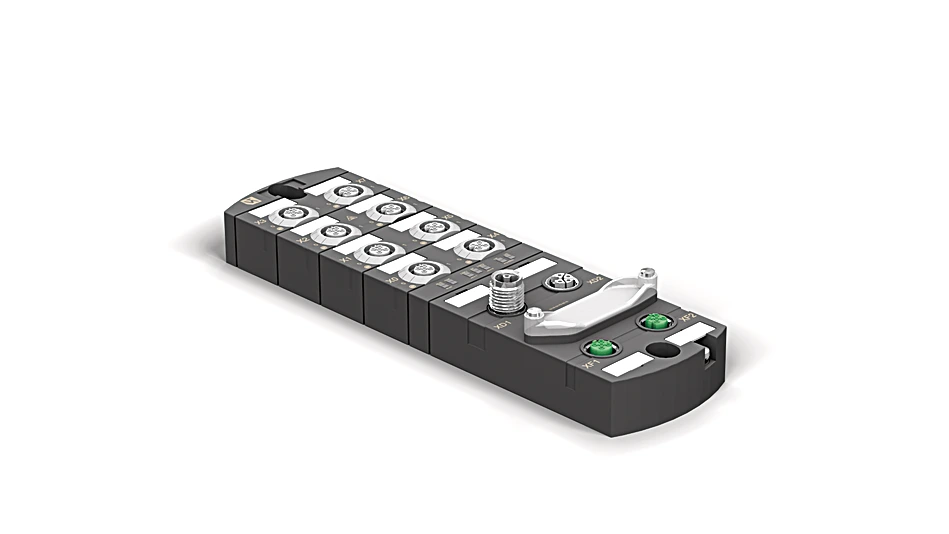

EP8C001 IO-Link Master EtherCAT
IO-Link Master
In Stock
$1,066.15
per unit
Applications: Sensors & I/O
Description
These IO-Link masters enable the connection of IO-Link devices (sensors and actuators) with EtherCAT. All ports can also be used as digital input (DI) or output (DO) and configured as Class A or Class B port. With its IP67 degree of protection, the IO-Link master is suitable for use in harsh industrial environments.
Features at a Glance
- 8 flexible and configurable IO-Link ports
- Integrated cloud interfaces for Industrie 4.0 (IIoT-ready)
- IP67 degree of protection for harsh industrial environments
- Web server with a wide range of options, e.g. IODD interpreter
Technical Data
Electrical Data
| Supply Voltage | 18 … 30 V DC |
| Max. Current Consumption | 16 A |
| Power consumption of device max. | 0.18 A |
| Max. Switching Current Switching Outputs | 2 A |
| Max. Switching Current Switching Outputs IO-Link | 2 A |
| max. total current of the digital I/O ports | 10 A |
| Sensor Supply Voltage (Pin 1) | 2 A |
| Temperature Range | -40 … 70 °C |
| Atmospheric humidity | ≤95% |
| Digital I/O ports short circuit protected | yes |
| Digital I/O ports overload protected | yes |
| Digital I/O ports reverse polarity protected | yes |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Standard I/O-Pins | 16 |
| Number of IO-link ports | 8 |
| Inputs according to DIN EN 61131-2:2003 | Type 1 Type 3 |
| Protection Class | III |
| Shock resistance per DIN IEC 68-2-27 | 50 g / 11 ms |
| Vibration resistance per DIN IEC 60068-2-6 | 20 g (58…150 Hz) |
Mechanical Data
| Setting Method | Web server |
| Housing Material | Plastic, PBT/PC |
| Degree of Protection | IP67 |
| Type of connection digital I/O ports | 8 × M12 × 1; 5-pin, A-coded |
| Type of Connection Power | 2 × M12 × 1; 5-pin, L-coded |
| Type of Connection Industrial Ethernet Ports | 2 × M12 × 1; 5-pin, D-coded |
| Weight | 470 g |
General Data
| Scope of delivery | 1 × IO-Link master |
Industrial Communication
| IIoT functions | MQTT OPC UA REST API Web server |
| Interface | IO-Link EtherCAT |
| Number of Industrial Ethernet Ports | 2 × M12, 5-pin |
| Number of I/Os | 16 × switchable |
| Baud Rate Ethernet | 100 Mbit/s |
| Communication Mode IO-Link | SIO, COM1, COM2, COM3 |
| Interface | Ethernet |
| IO-Link Version | 1.1 |
| IO-link port | Class A Class B |
| Transmission rate | 100 Mbit/s |
| Transmission Mode | Full Duplex |
Standards and certificates
      |

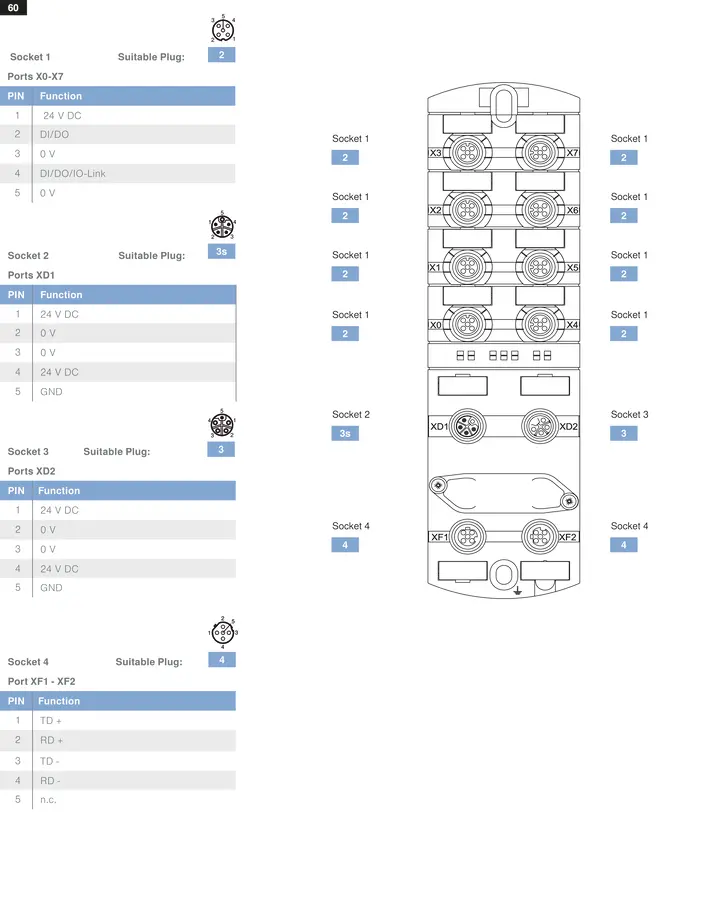

Connection Table
 |
