EOS2 1353 XM
Master, Auto-manual restart + EDM
In Stock
$1,710.69
per unit
Applications: Safety Systems
Description
Compact Safety Light Curtain: Type 2, SIL 1, SILCL 1, PL c, Cat. 2
Cross Section: 28 x 30 mm
No blind area on one side
Hardware configuration: no programming necessary, easy to install and replace
Connection and configuration through M12 connectors
Unshielded cables up to 100 m can be used to connect the Safety Light Curtain

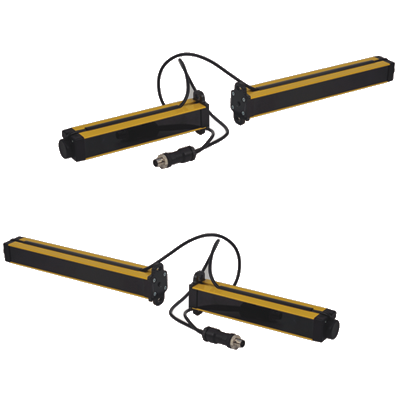

What’s in the Box: Emitter, Receiver and Standard Fastening Brackets
Technical Data
Features
| Safety level | Type 2 – PL c |
| Protected height (mm) | 1360 |
| Resolution (mm) | 30 |
| Controlled height (mm) | 1350 |
| Max. range (m) | 12 |
| Restart | Built-in – User selectable automatic or manual |
| Functioning system | Emitter / Receiver |

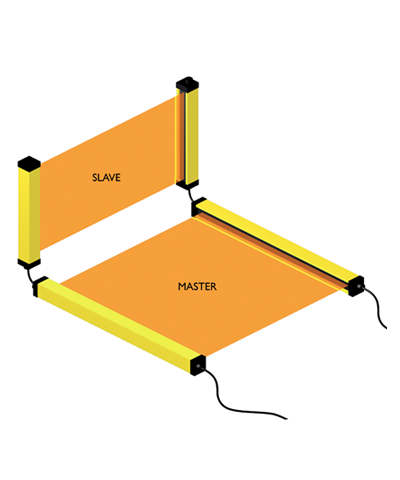

| Master Slave Models | Yes |
| Safety level (SIL / PL) | Type 2 – SIL 1 – SILCL 1 – PL c – Cat. 2 |
| Operating temperature (°C) | – 30 … 55 |
| Response time (ms) | See technical manual |
| Number of beams | 68 |
| Max. length of the connection cables (m) | 100 (50 between Master and Slave) |
| Signalling | LEDs for light curtain’s status and diagnostics |
| Safety output type | 2 fail-safe PNP (400 mA at 24 VDC) with protection against short circuit, overload and reverse polarity |
| Connections | M12 5-pole connector (emitter), M12 8-pole connector (receiver) |
| MTTFD (ISO13849) years | 154,1 |
| PFHD (IEC 61508) | 0,000000071 |
| Safety outputs | 2 OSSD PNP (400 mA at 24 VDC) |
| Safety functions | Integrated |
| Detection | Hand |
| Operating Range (m) | Selectable: 0 … 4 m – low range / 0 … 12 m – high range |
| Protective enclosures | None |
| Packaging dimensions HxLxW (mm) | 105 x 1500 x 160 |
| Product class | C |
| Custom tariff | 85365019 |
Electrical data
| Power supply (VDC) | 24 ± 20% |
Mechanical data
| Overall height (mm) | 1436,5 |
| Cross section dimensions (mm) | 28 x 30 |
| Degree of protection | IP65 – IP67 |
| Fastening | Back slot with set of LE type brackets (included) or to the top and lower end with swivel brackets SFB E (optional) |
