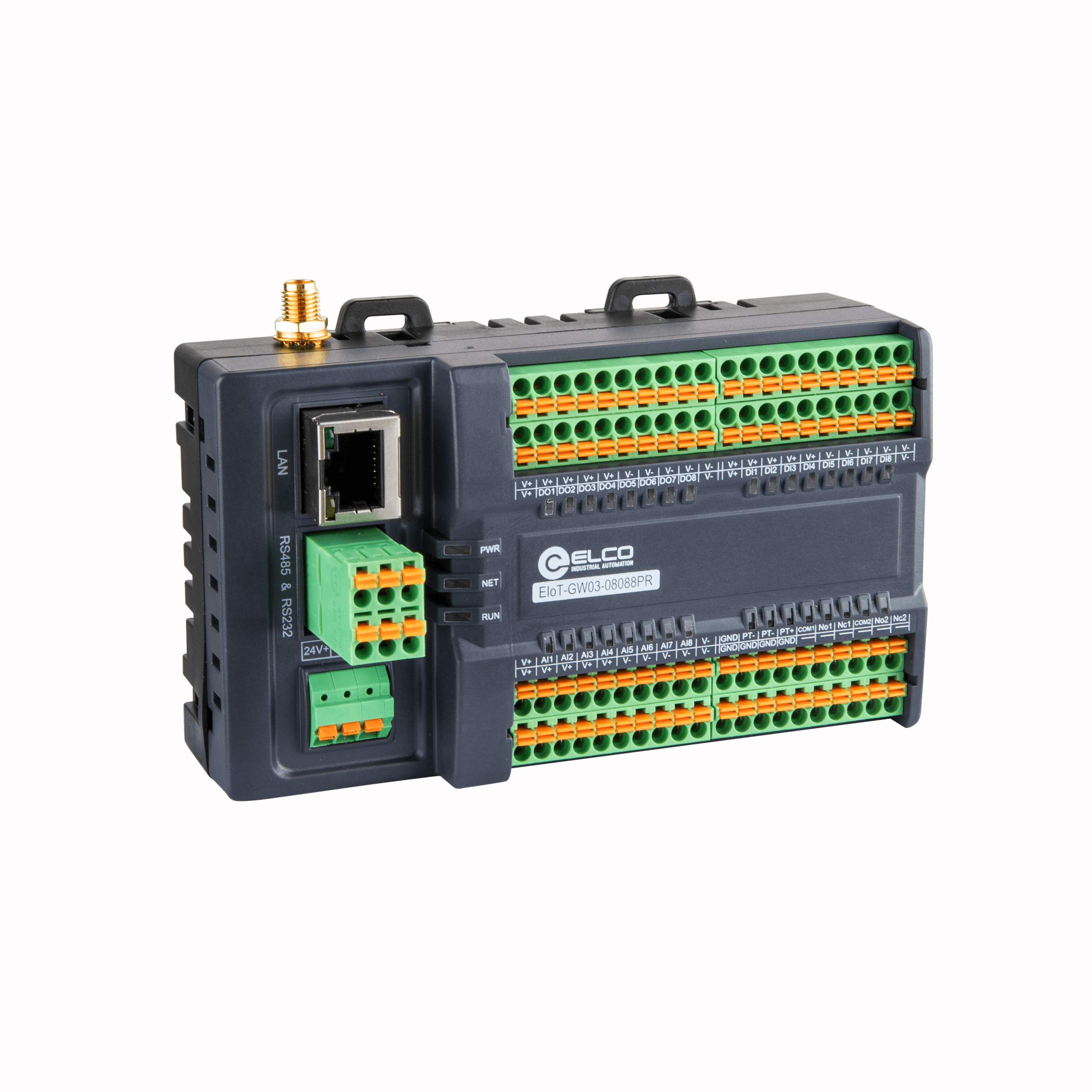

EIoT-GW03-08088PR Remote IO module
Remote IO module, EIoT-GW series, WiFi version, Support 8 digital inputs, 8 digital outputs, 8 analog inputs, 1 PT100, 2 relay outputs, Support Modbus TCP communication.
In Stock
$348.55
per unit
Applications: HMI & Controls
Technical Data
| Number of digital interfaces | 16 |
| Digital output type | 24 V |
| Relay carrying capacity | NO 5 A 250 V AC, NO 5 A 30 V DC, NC 3 A 250 V AC, NC 3 A 30 V DC |
| Analog quantity type | 0 … 20mA, 4 … 20mA, 0 … 5V, 0 … 10V |
| Northbound communication protocol | MQTT |
| Southbound communication protocol | Modbus |
| IO customization(numerical quantity) | Yes |
| WiFi | Yes |
| Docking platform | ELCO EEDS |
| Number of analog interfaces | 8 |
| Digital input type | Logic level low 0 … 1.2 V, Logic level high 3.5 … 30 V |
