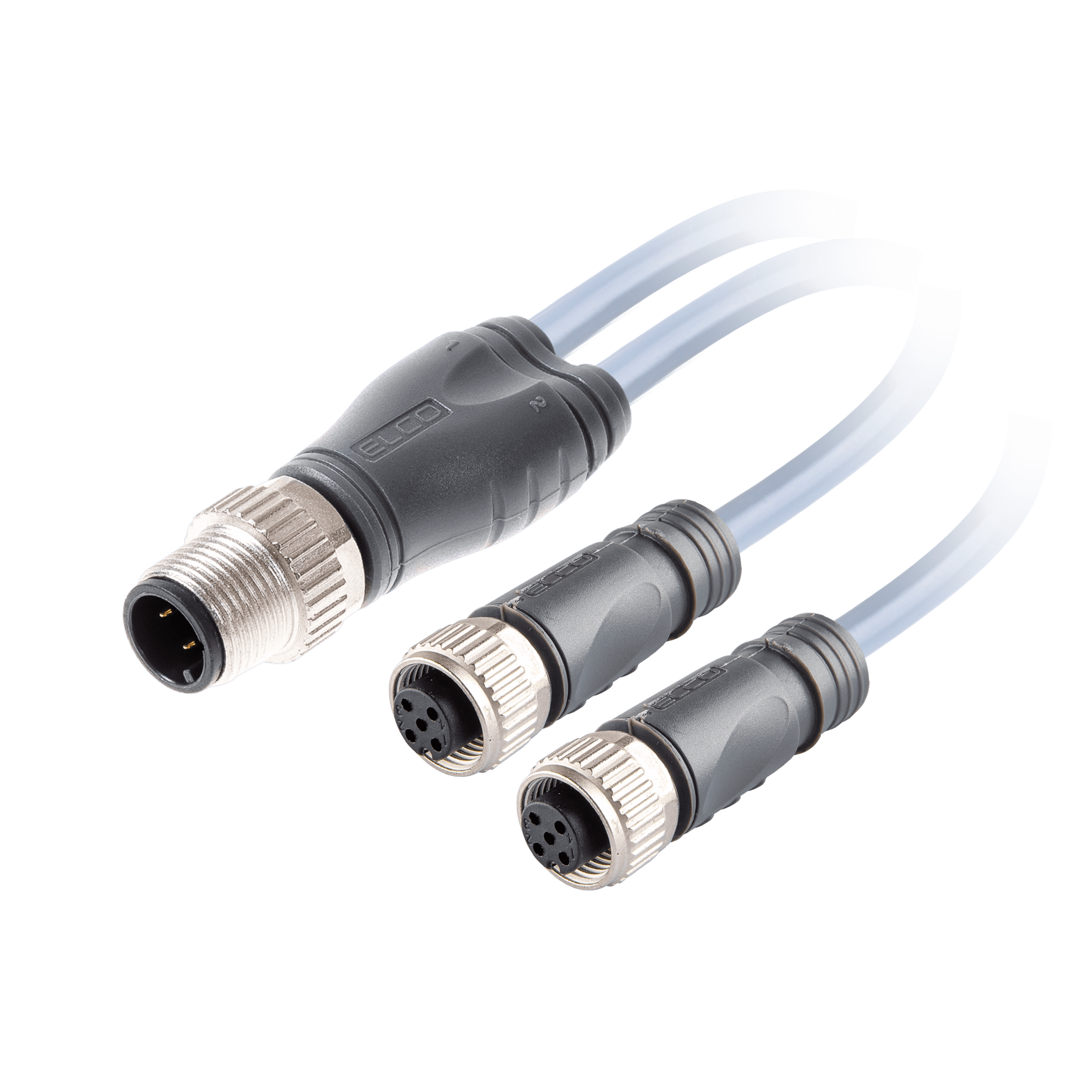

ECS-2CO12.4-6/6 Y-Splitter
Y-Splitter, M12 A-code 4-pin Straight Male, to 2x M12 A-code 3-pin Straight Female, with PVC grey jacket 3 x 0.34mm² (22 AWG) Cable , 6 m/6 m
In Stock
$31.27
per unit
Applications: Sensors & I/O
Technical Data
| Wire insulation material | PVC |
| LED indicator | NO |
| Cable length | 6 m |
| Wire insulation color | BN,BU,BK |
| IP rating | IP67 |
| The head material | TPU |
| Material contact | TPU |
| Cable jacket material | PVC |
| Coating contact material | Gold-plated copper |
| Shielded/Unshielded | No |
| Nut/bolt material | Zinc die casting |
| Cable jacket color | grey |
| Rated voltage | 250 V AC/DC |
| Rated current | 4 A |
| Drag chain | Fixed installation |
| Wire cross-section | 0.34 mm² (22 AWG) |
| Flex & Torsion | NO |
| Resistant to welding sparks | NO |
| Head 1 Number of contacts | 4 |
| Head 2 Number of contacts | 3 |
| Head 3 Number of contacts | 3 |
| Product type | Y-Splitter |
| Termination type | Y-Splitter |
| Head 1 Type | M12 |
| Head 1 Coding | A-code |
| Head 1 Shape | Straight |
| Head 1 Gender | Male |
| Head 2 Type | M12 |
| Head 2 Coding | A-code |
| Head 2 Shape | Straight |
| Head 2 Gender | Female |
| Head 3 Type | M12 |
| Head 3 Coding | A-code |
| Head 3 Shape | Straight |
| Head 3 Gender | Female |
